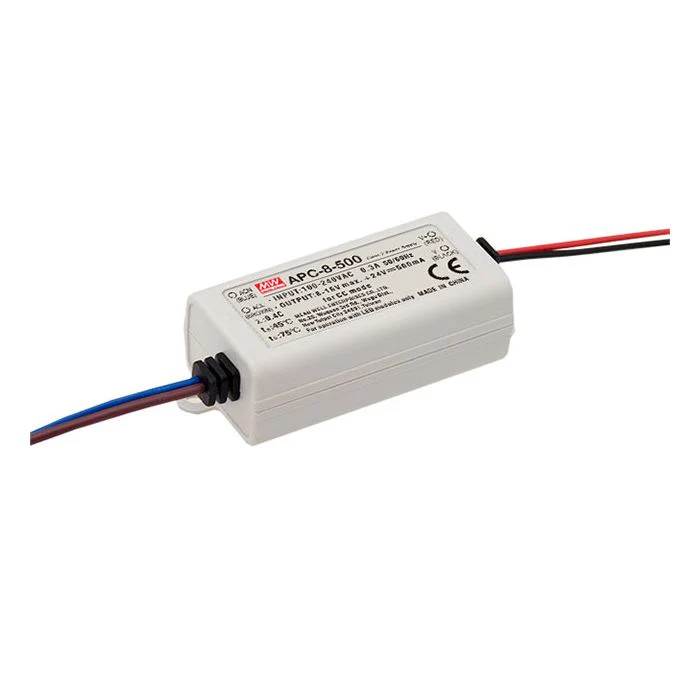

APC-8-S - Mean Well APC-8 Series LED Driver 8W 250mA – 700mA
Constant CurrentFully isolated plastic caseProtections: Short circuitOther features:Universal AC input / Full RangeSmall and compact sizeNo load power consumption <0.5WIP30 designClass II power unit, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 8 Output Current Choose Option Dimmable (Type) No Output Voltage Range (V) 5~11 Dimensions 60 x 30 x 22 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-8-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 8 Output Current Choose Option Dimmable (Type) No Output Voltage Range (V) 5~11 Dimensions 60 x 30 x 22 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-8-spec.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
APC-8-S - Mean Well APC-8 Series LED Driver 8W 250mA – 700mA
APC-8-S - Mean Well APC-8 Series LED Driver 8W 250mA – 700mA
Constant CurrentFully isolated plastic caseProtections: Short circuitOther features:Universal AC input / Full RangeSmall and compact sizeNo load power consumption <0.5WIP30 designClass II power unit, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 8 Output Current Choose Option Dimmable (Type) No Output Voltage Range (V) 5~11 Dimensions 60 x 30 x 22 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-8-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 8 Output Current Choose Option Dimmable (Type) No Output Voltage Range (V) 5~11 Dimensions 60 x 30 x 22 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-8-spec.pdf
$12.93
APC-8-S - Mean Well APC-8 Series LED Driver 8W 250mA – 700mA—
$12.93
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Constant CurrentFully isolated plastic caseProtections: Short circuitOther features:Universal AC input / Full RangeSmall and compact sizeNo load power consumption <0.5WIP30 designClass II power unit, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 8 Output Current Choose Option Dimmable (Type) No Output Voltage Range (V) 5~11 Dimensions 60 x 30 x 22 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-8-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 8 Output Current Choose Option Dimmable (Type) No Output Voltage Range (V) 5~11 Dimensions 60 x 30 x 22 EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A Input Voltage 90~264VAC; 127~370VDC Safety Standards Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet APC-8-spec.pdf
