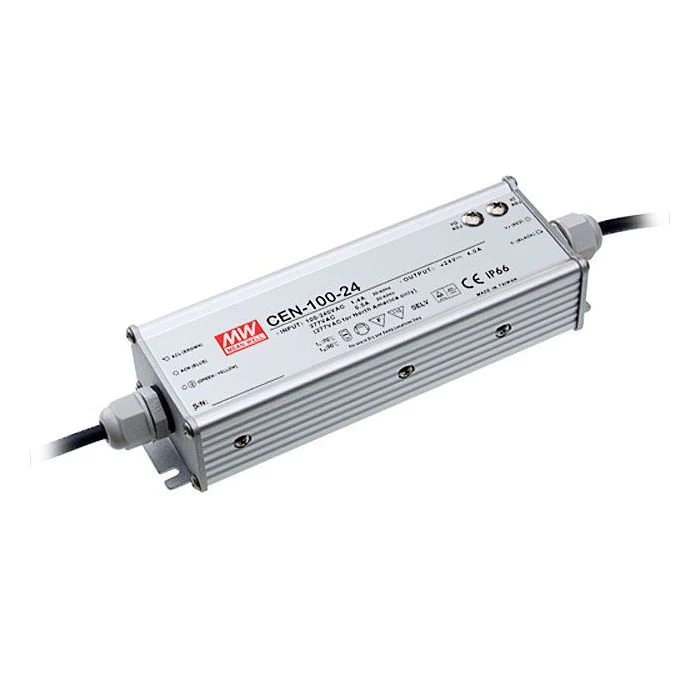

CEN-100-S - Mean Well CEN-100 Series LED Driver 100W 20V – 54V
Built-in active PFC function, PF>0.9 for 75% of load or higherIP66 designProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295VAC) / Full rangeMeet 4kV surge immunity level (IEC61000-4-5)Class 2 power unitCooling by free air convectionSuitable for dry,damp and wet locationSuitable for LED lighting and moving sign applications3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) No DC Output Adjustment +/-10% rated output voltage Dimensions 193 x 62.5 x 40.5 EMC Standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750,TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet CEN-100-SPEC.PDF
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) No DC Output Adjustment +/-10% rated output voltage Dimensions 193 x 62.5 x 40.5 EMC Standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750,TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet CEN-100-SPEC.PDF
Product Information
Product Information
Shipping & Returns
Shipping & Returns
CEN-100-S - Mean Well CEN-100 Series LED Driver 100W 20V – 54V
CEN-100-S - Mean Well CEN-100 Series LED Driver 100W 20V – 54V
Built-in active PFC function, PF>0.9 for 75% of load or higherIP66 designProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295VAC) / Full rangeMeet 4kV surge immunity level (IEC61000-4-5)Class 2 power unitCooling by free air convectionSuitable for dry,damp and wet locationSuitable for LED lighting and moving sign applications3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) No DC Output Adjustment +/-10% rated output voltage Dimensions 193 x 62.5 x 40.5 EMC Standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750,TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet CEN-100-SPEC.PDF
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) No DC Output Adjustment +/-10% rated output voltage Dimensions 193 x 62.5 x 40.5 EMC Standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750,TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet CEN-100-SPEC.PDF
$112.78
CEN-100-S - Mean Well CEN-100 Series LED Driver 100W 20V – 54V—
$112.78
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in active PFC function, PF>0.9 for 75% of load or higherIP66 designProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295VAC) / Full rangeMeet 4kV surge immunity level (IEC61000-4-5)Class 2 power unitCooling by free air convectionSuitable for dry,damp and wet locationSuitable for LED lighting and moving sign applications3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) No DC Output Adjustment +/-10% rated output voltage Dimensions 193 x 62.5 x 40.5 EMC Standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750,TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet CEN-100-SPEC.PDF
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) No DC Output Adjustment +/-10% rated output voltage Dimensions 193 x 62.5 x 40.5 EMC Standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750,TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet CEN-100-SPEC.PDF
