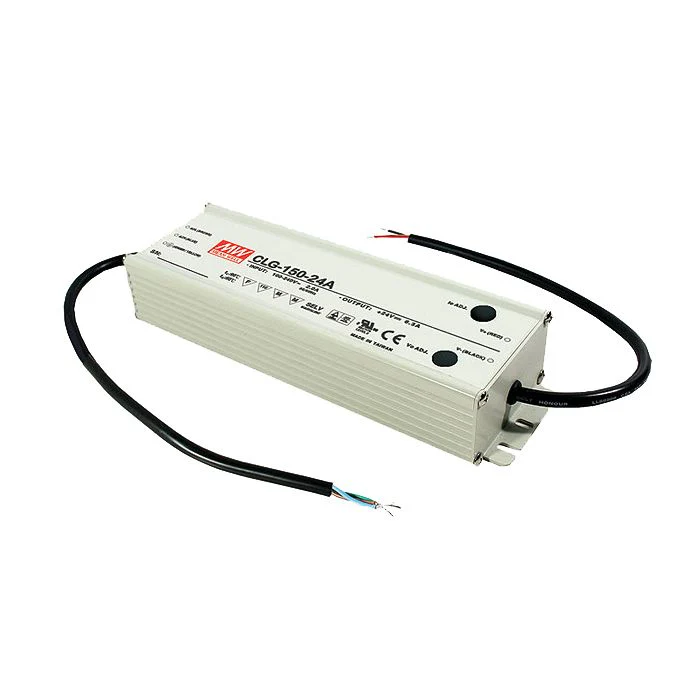

CLG-150-36A - Mean Well LED Driver CLG-150-36A 150W 36V
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP65 design for indoor or outdoor installationsCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)Output voltage and C.C level can be adjusted through internal potentiometer3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 36V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 36V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
CLG-150-36A - Mean Well LED Driver CLG-150-36A 150W 36V
CLG-150-36A - Mean Well LED Driver CLG-150-36A 150W 36V
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP65 design for indoor or outdoor installationsCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)Output voltage and C.C level can be adjusted through internal potentiometer3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 36V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 36V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
$119.31
CLG-150-36A - Mean Well LED Driver CLG-150-36A 150W 36V—
$119.31
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP65 design for indoor or outdoor installationsCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)Output voltage and C.C level can be adjusted through internal potentiometer3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 36V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 36V Dimmable (Type) No DC Output Adjustment A type can be adjusted by internal potentiometer Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
