CPH/MinEM Central Battery LED Strip System

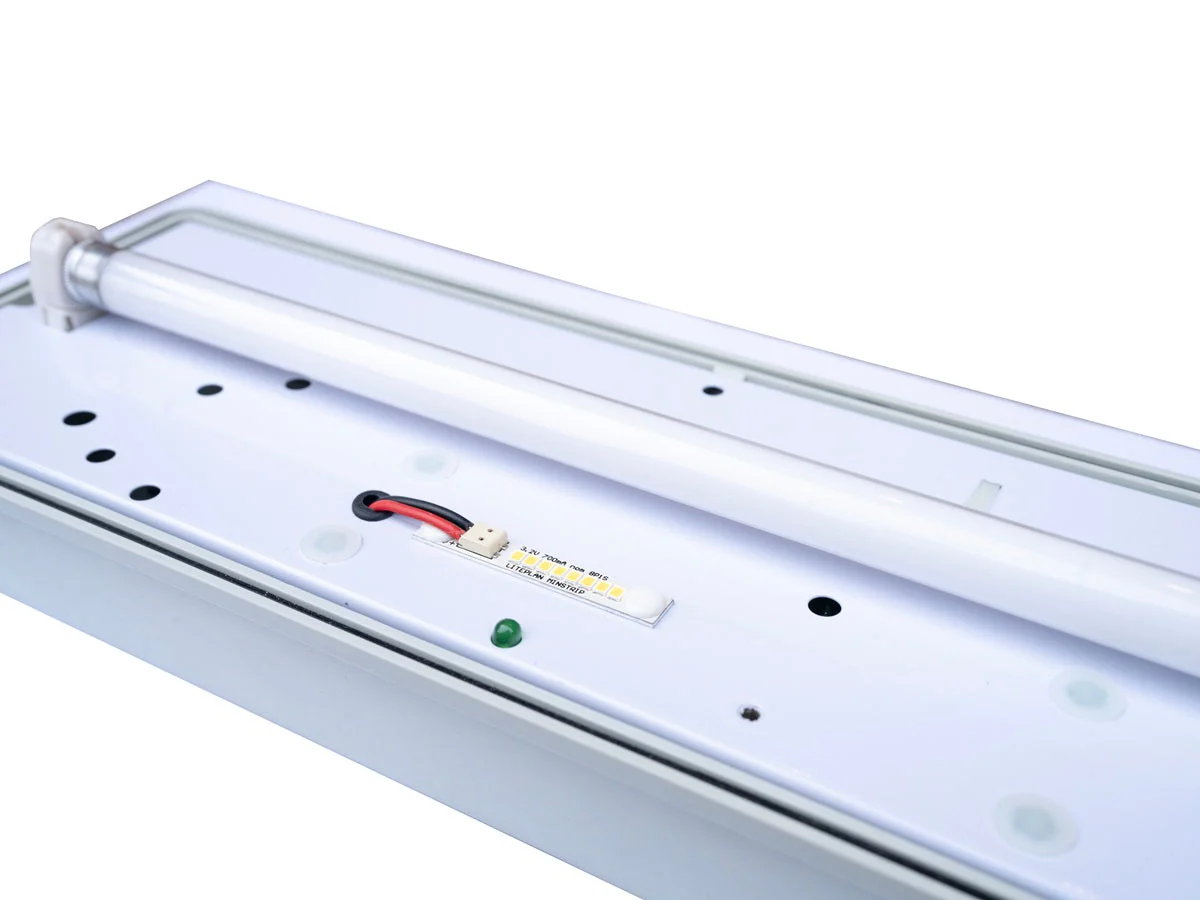

The CPH unit is designed as a central battery driver with hold off (240V, 110V or 50V AC/DC) and powers a single dedicated 300lm LED strip in emergency, with the output held off whenever the 240V AC un-switched supply is present. At the point the un-switched supply is broken, the driver will accept the feed from the central battery and power the dedicated 52mm LED strip at 700mA, providing 300lm for the duration of the central battery feed.
This unit is for intermittent use. If being used as a slave, this must be considered. The unit is not for permanent use.
- 50V AC or DC 1 LED at 350mA or 700mA (2.5V-3.5V)
- 110V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
- 240V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
CPH/MinEM Central Battery LED Strip System
CPH/MinEM Central Battery LED Strip System
The CPH unit is designed as a central battery driver with hold off (240V, 110V or 50V AC/DC) and powers a single dedicated 300lm LED strip in emergency, with the output held off whenever the 240V AC un-switched supply is present. At the point the un-switched supply is broken, the driver will accept the feed from the central battery and power the dedicated 52mm LED strip at 700mA, providing 300lm for the duration of the central battery feed.
This unit is for intermittent use. If being used as a slave, this must be considered. The unit is not for permanent use.
- 50V AC or DC 1 LED at 350mA or 700mA (2.5V-3.5V)
- 110V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
- 240V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The CPH unit is designed as a central battery driver with hold off (240V, 110V or 50V AC/DC) and powers a single dedicated 300lm LED strip in emergency, with the output held off whenever the 240V AC un-switched supply is present. At the point the un-switched supply is broken, the driver will accept the feed from the central battery and power the dedicated 52mm LED strip at 700mA, providing 300lm for the duration of the central battery feed.
This unit is for intermittent use. If being used as a slave, this must be considered. The unit is not for permanent use.
- 50V AC or DC 1 LED at 350mA or 700mA (2.5V-3.5V)
- 110V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
- 240V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
