DALI Universal Dimmer

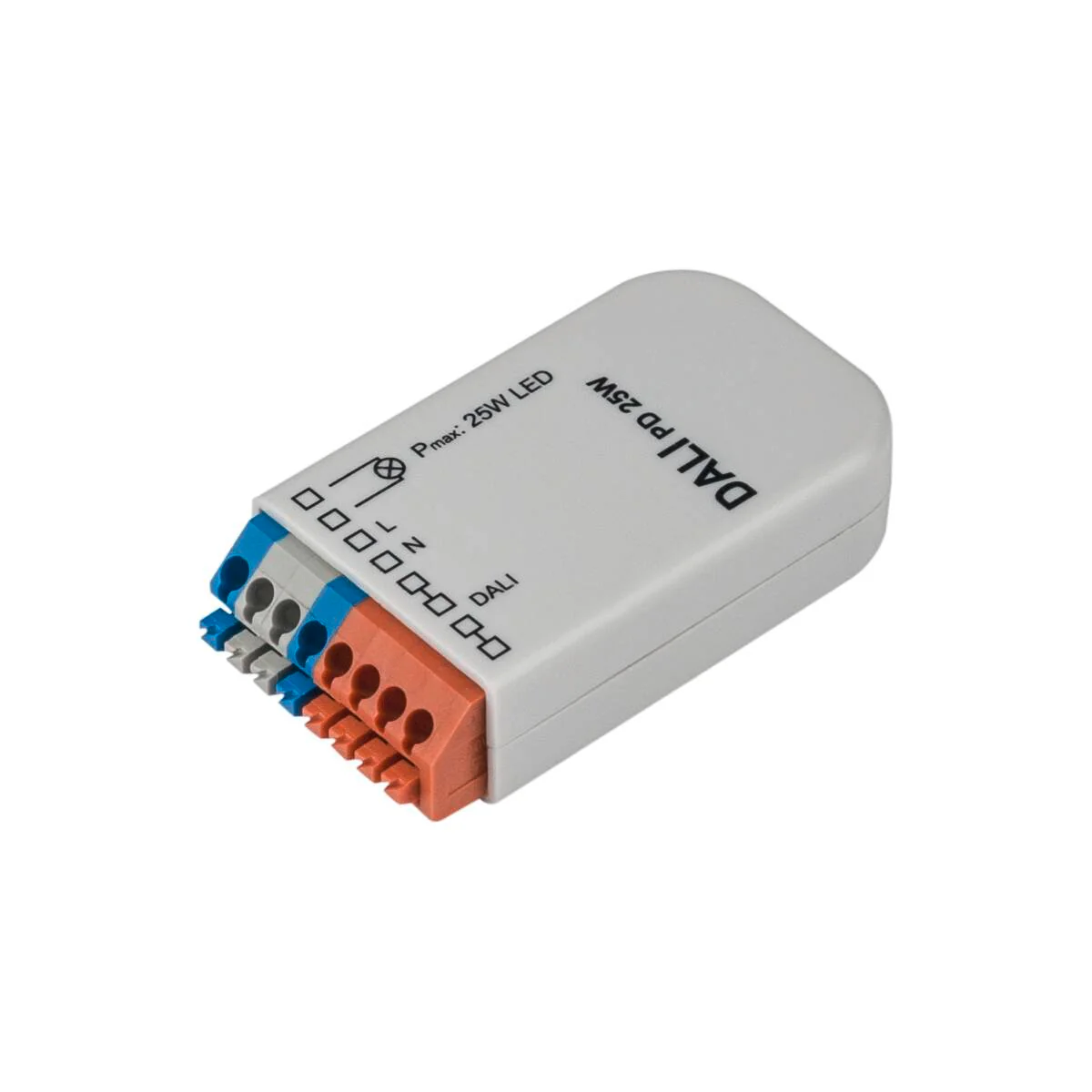

Compact, universal phase dimmer with automatic load detection and DALI control input for incorporating 230V luminaires in a DALI system. Available as a compact 25W variant
TECHNICAL DATA
Product name
DALI UNIVERSAL DIMMER
Colour
grey
Material
plastic
Dimmable
Yes
Dimming technology
DALI
Protection category
II
IP Code
IP 20
Length
58.5 mm
Width
32.5 mm
Height
15 mm
Nominal voltage
230V ~50/60Hz
Output voltage
230V AC
Primary nominal voltage
230V ~50/60Hz
Output current
200 mA
Operational cycles
0
Ambient temperature
-20 - 60 °C
Net weight
16 g
Output Wattage
3 - 25 W
