Product description

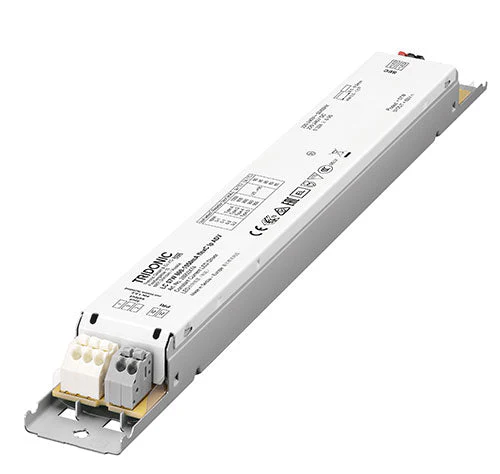

• LED Constant current LED driver for luminaire installation
• New version DC operating with EL marking
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• Output current adjustable between 800 – 1,050 mA
• Max. output power 57 W
• Up to 86 % efficiency
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Housing properties

• Low profile metal casing with white cover
• Type of protection IP20

Interfaces

• Terminal blocks: 45° push terminals

Functions

• Overload protection
• Short-circuit protection
• No-load protection
• Overtemperature protection
• Burst protection voltage 1 kV
• Surge protection voltage 1 kV (L to N)
• Surge protection voltage 2 kV (L/N to earth)
• Suitable for emergency escape lighting systems acc. to IEC 50172

Typical applications

• For linear/area lighting in office applications
