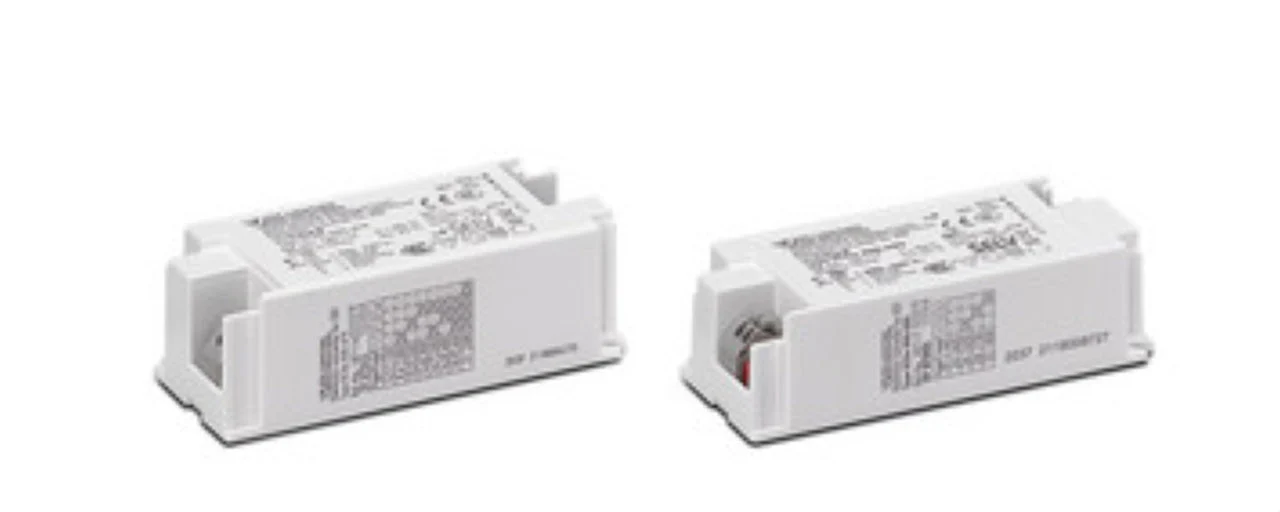

Product features

• Compact casing shape

Functions

• Selectable current output by dip-switch

Electrical features

• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm²
• Power factor at full load: > 0.95
• Open circuit voltage (Umax.): 60 V
• Secondary side switching of LED modules is not allowed

Safety features

• Protection against transient main peaks up to 1 kV (between L and N)
• Electronic short-circuit protection
• Overload protection
• Degree of protection: IP20
• Protection class II
• SELV

Dimensions

• Length: 97 mm • Width: 43 mm • Height: 30 mm

Product guarantee

• 5 years for operation at recommended operation temperature
