This ECOdrive product will be configured to your required current at any interval between 150mA and 1400mA.  Please state your required current in the box above.
If you do not require this extra service & wish to purchase this product at the pre-configured current of 350mA please click here.

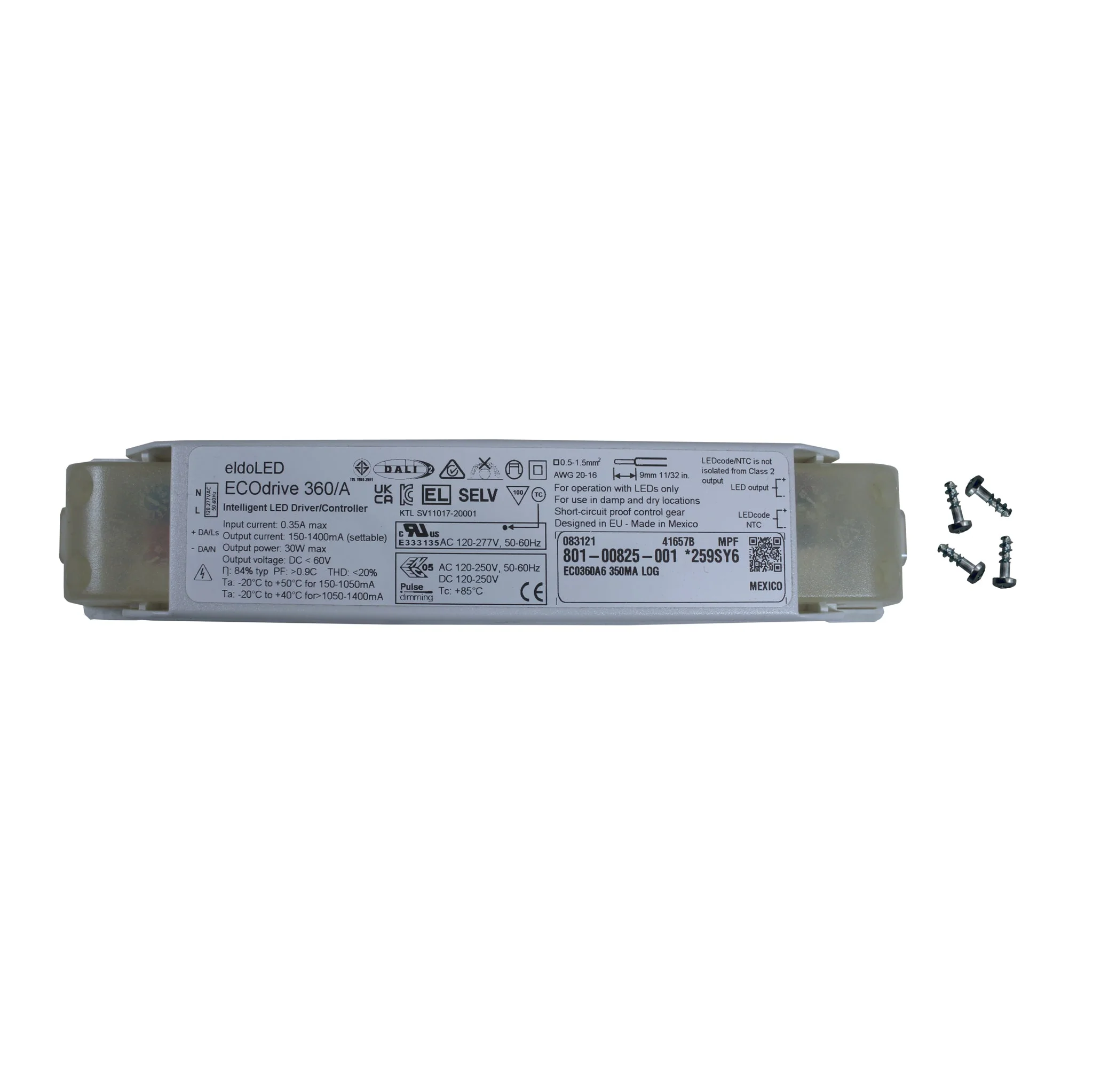

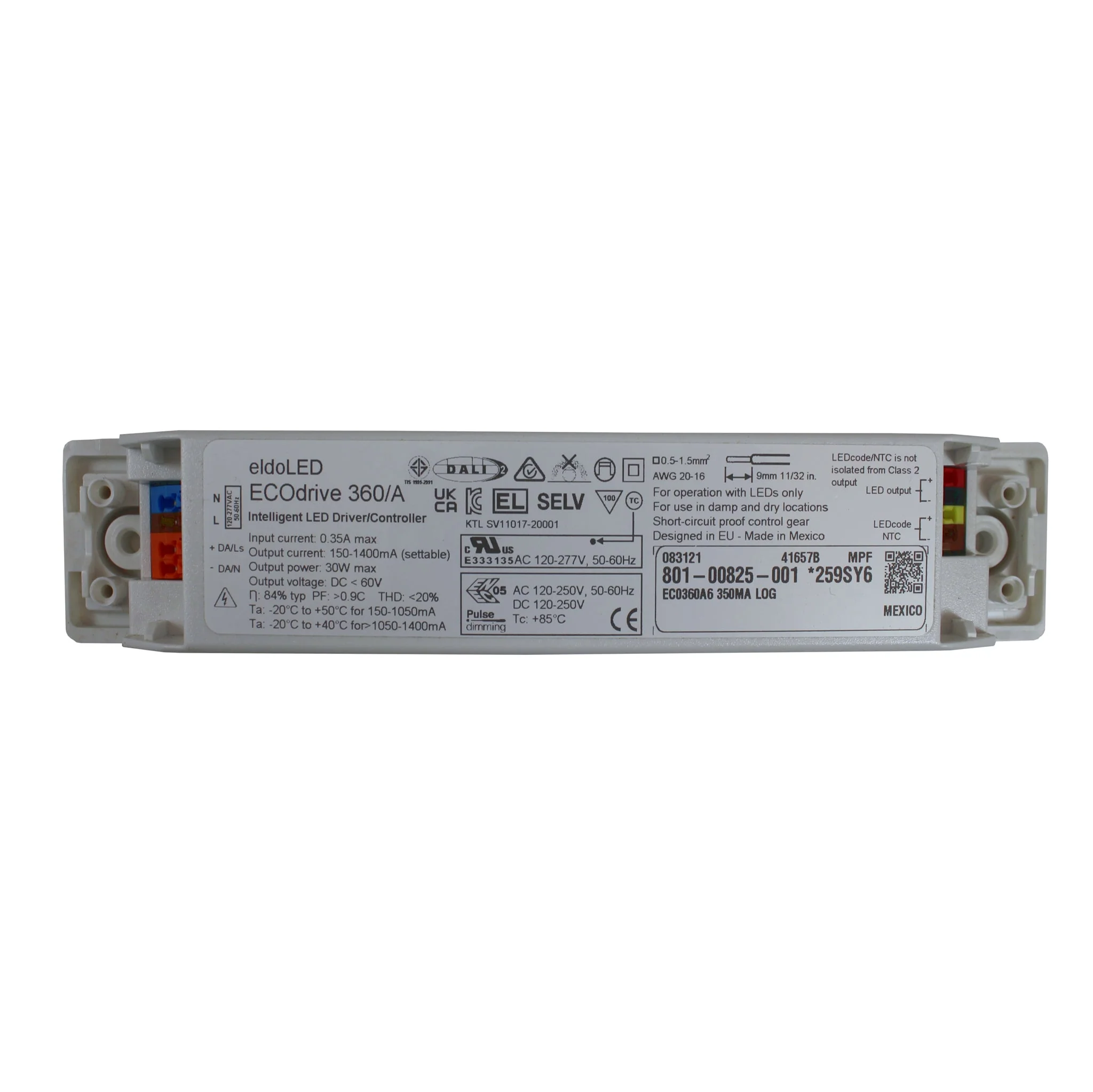

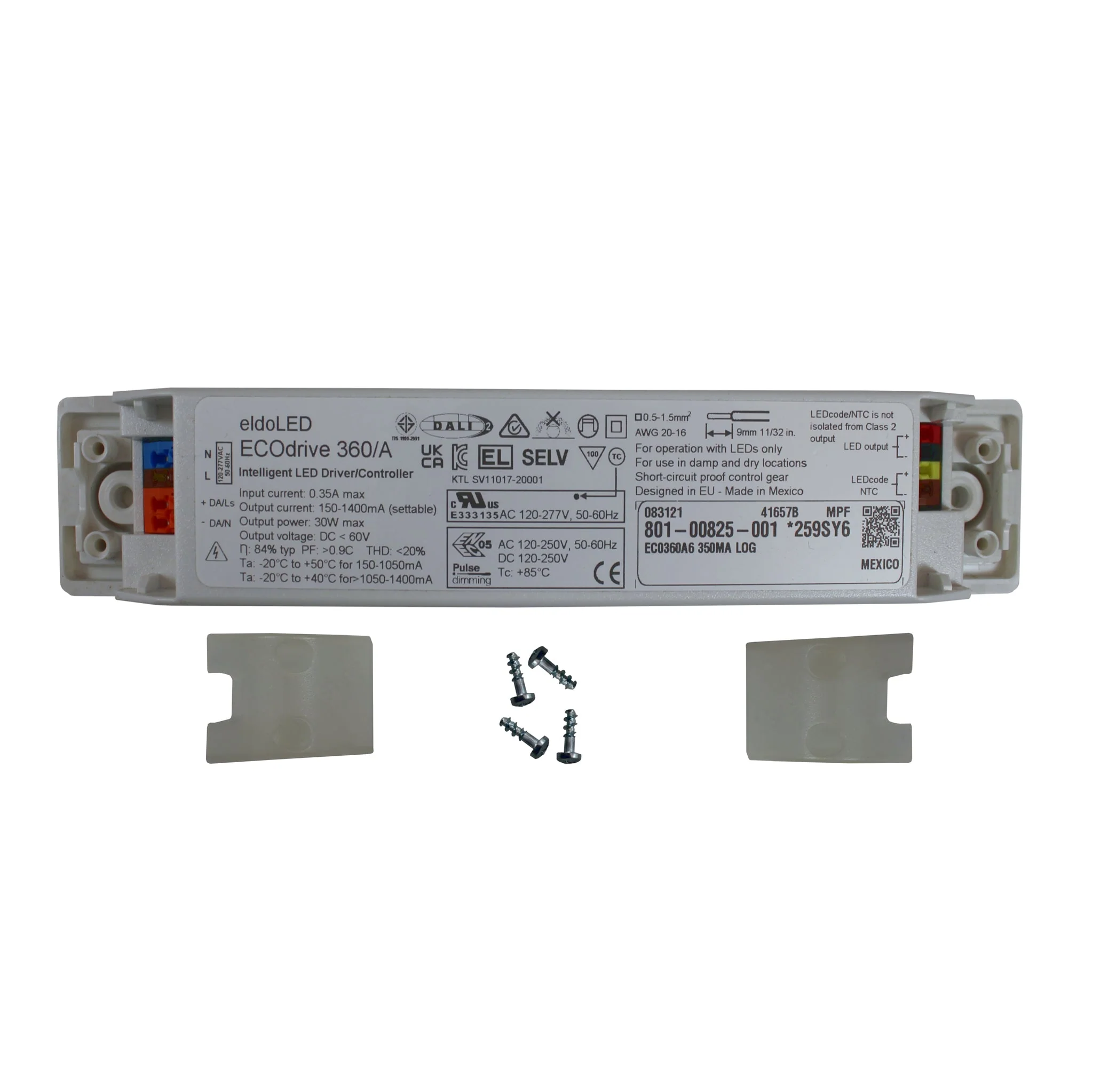

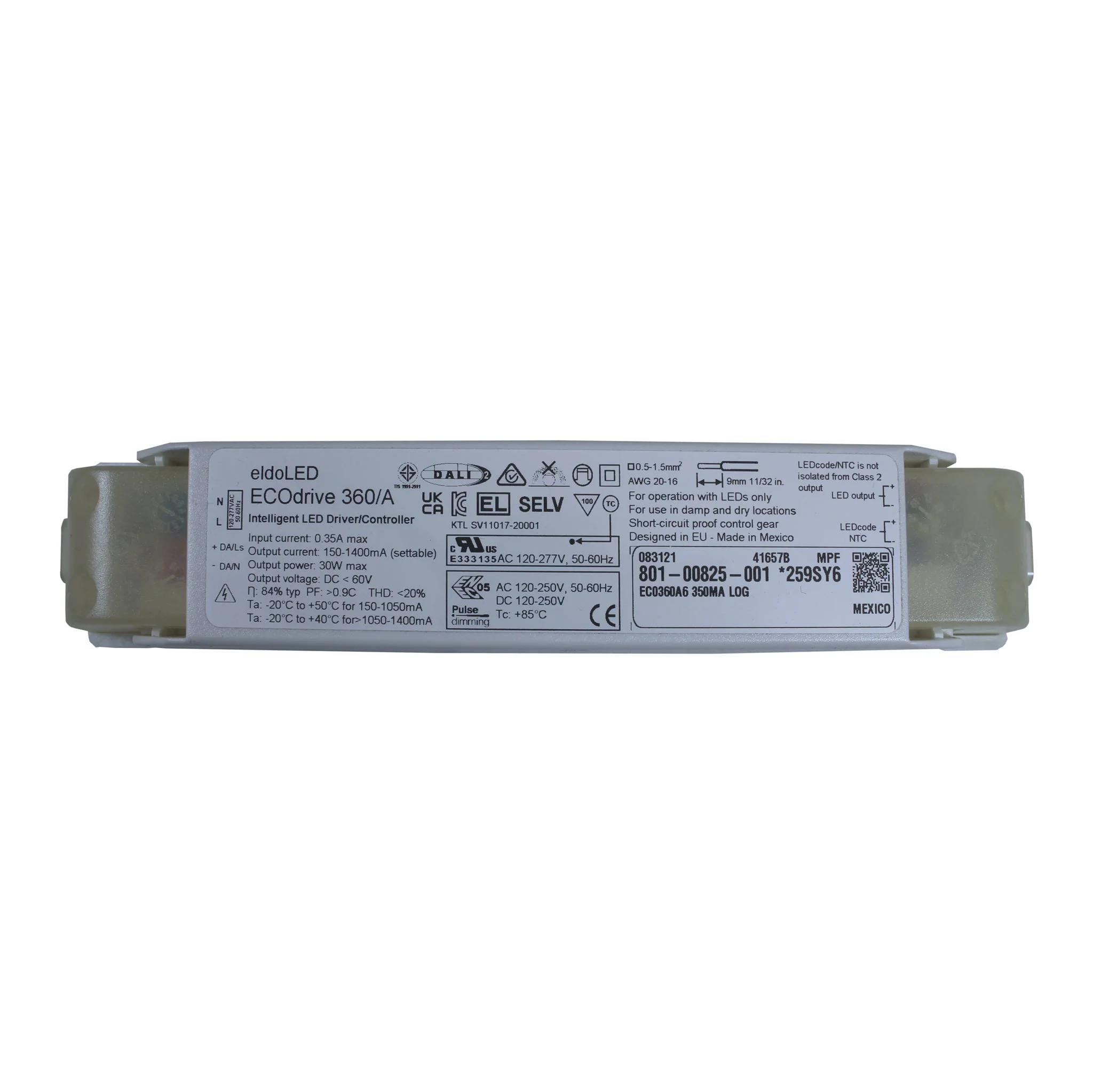

ECOdrive 360/A6 delivers 30W and is DALI-2 certified. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all ECOdrives, the 360/A6 smoothly dims down to 1%.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
• NTC interface for robust thermal management

Benefits

• Increase performance and capability of any LED fixture
• Reduce inventory and decrease lead times with configurable drivers
• Short lead times, designed to meet the most aggressive timelines
• Trusted brand with proven track record of performance and reliability

Input Characteristics

Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL)
Nominal input voltage range DC: 120 - 250V
Maximum input current: 0.35A @ 120V / 60Hz
Input frequency range: 50 - 60Hz

Output Characteristics

Maximum LED output power: 30W
Number of LED outputs: 1 (UL Class 2)
Programmable LED output current range: 150 - 1400mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 55V
