This ECOdrive product will be configured to your required current at any interval between 150mA and 1400mA.  Please let us know your required current.
Or the standard pre-configured current is 350mA.

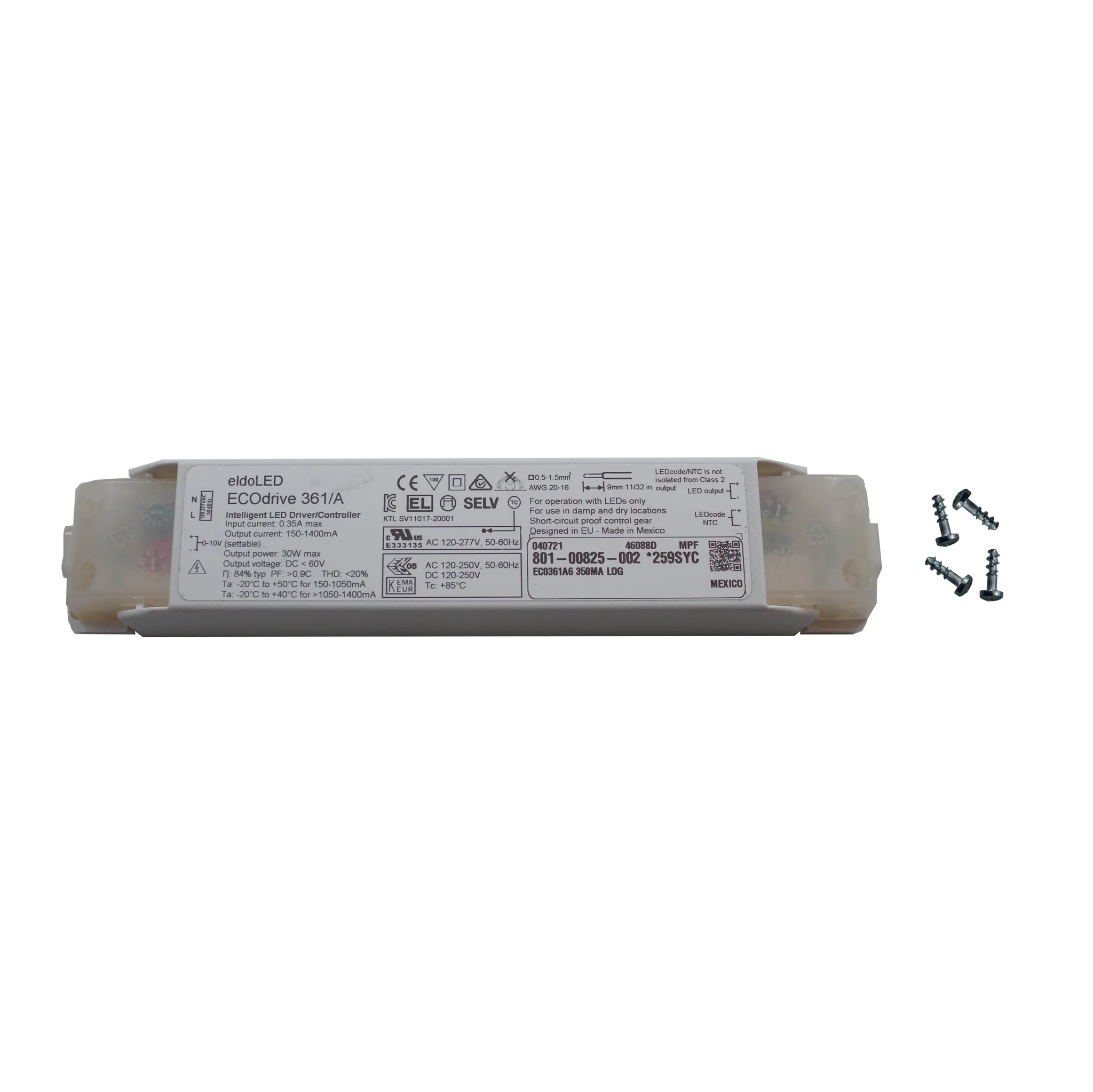

ECOdrive 361/A6 delivers 30W and is 0-10V compatible. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all ECOdrives, the 361/A6 smoothly dims down to 1%.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
• LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
• NTC interface for robust thermal management

Benefits

• Increase performance and capability of any LED fixture
• Reduce inventory and decrease lead times with configurable drivers
• Short lead times, designed to meet the most aggressive timelines
• Trusted brand with proven track record of performance and reliability

Input Characteristics

Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL)
Nominal input voltage range DC: 120 - 250V
Maximum input current: 0.35A @ 120V / 60Hz
Input frequency range: 50 - 60Hz

Output Characteristics

Maximum LED output power: 30W
Number of LED outputs: 1 (UL Class 2)
Programmable LED output current range: 150 - 1400mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 55V
