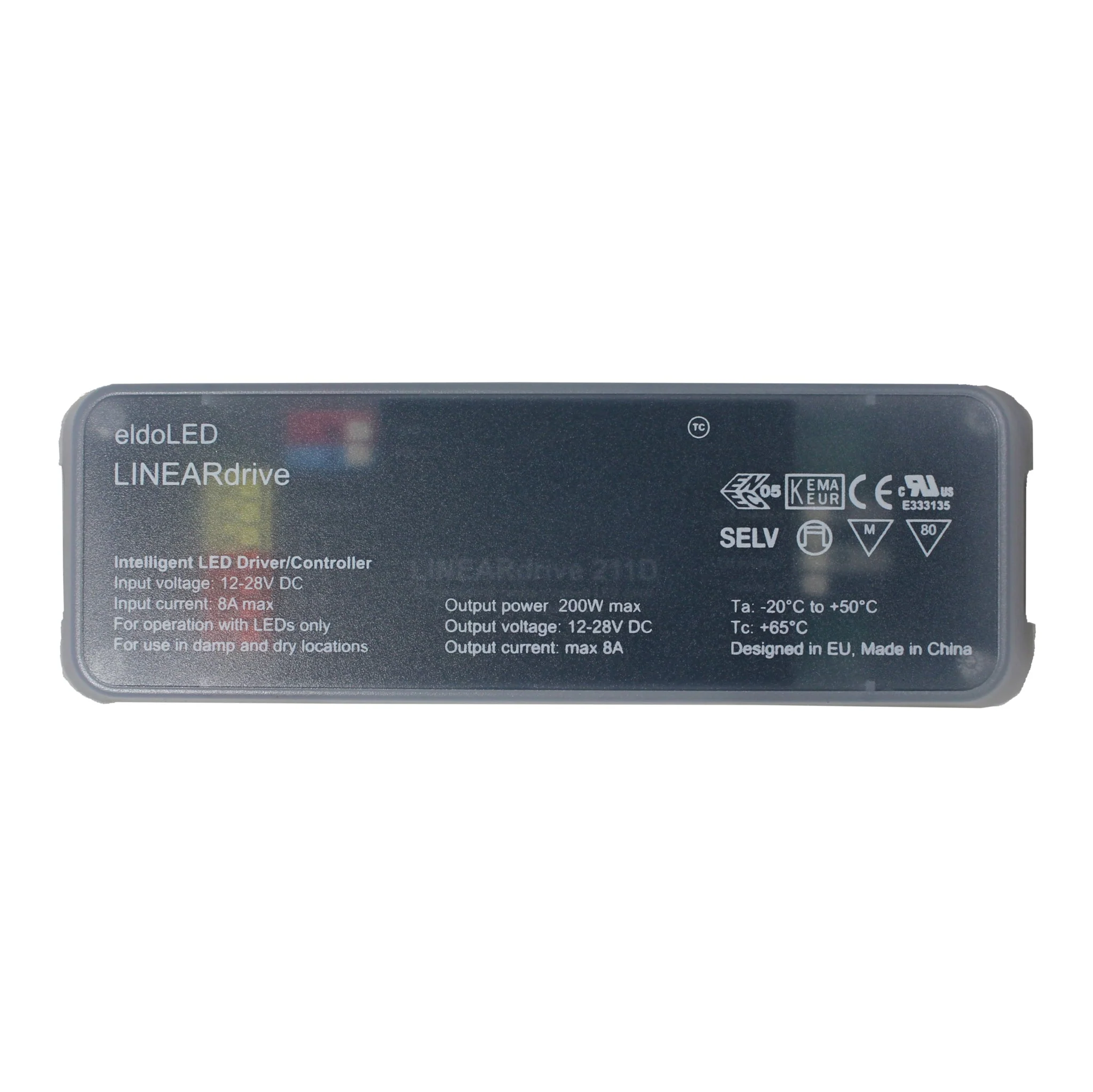

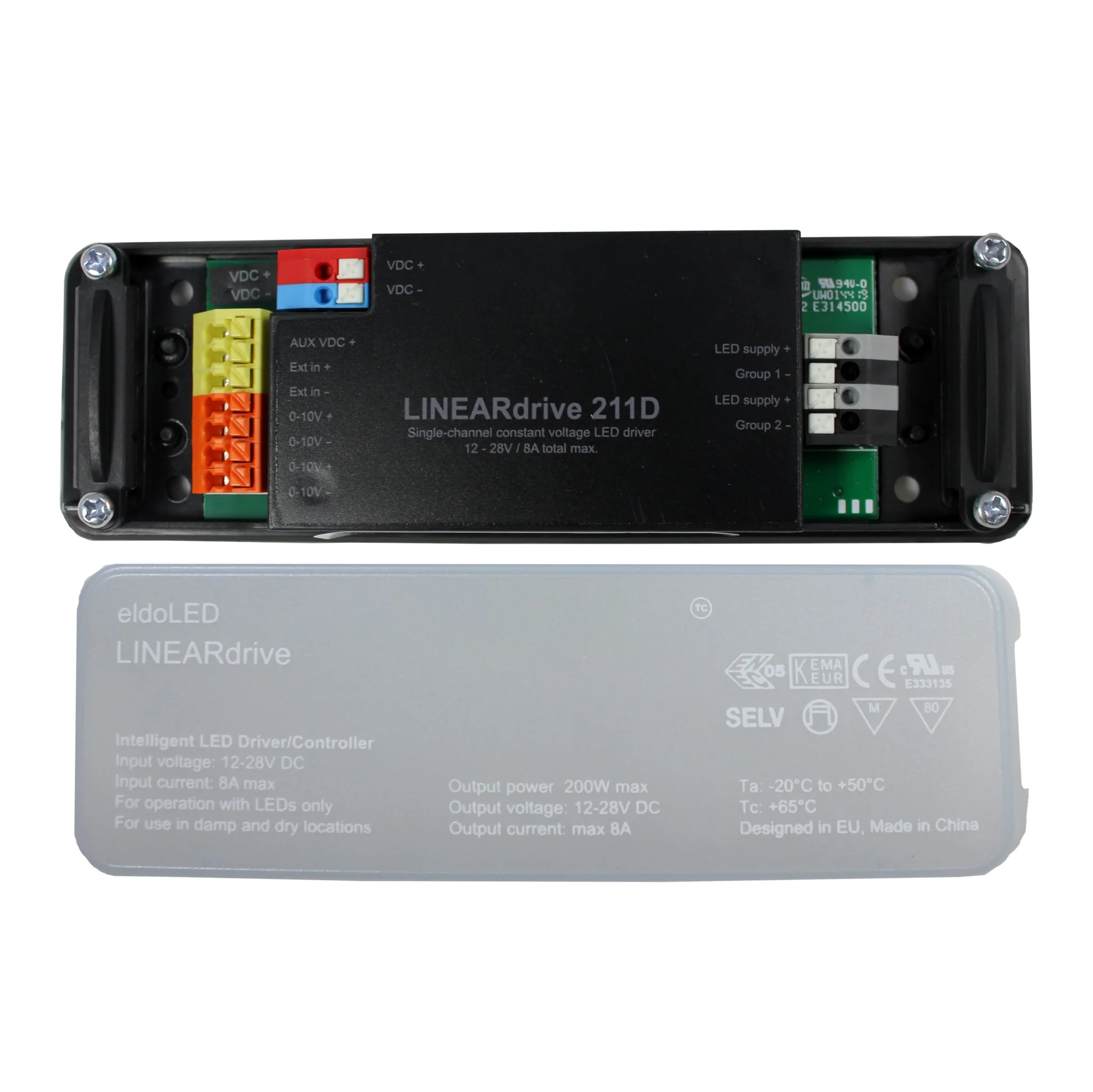

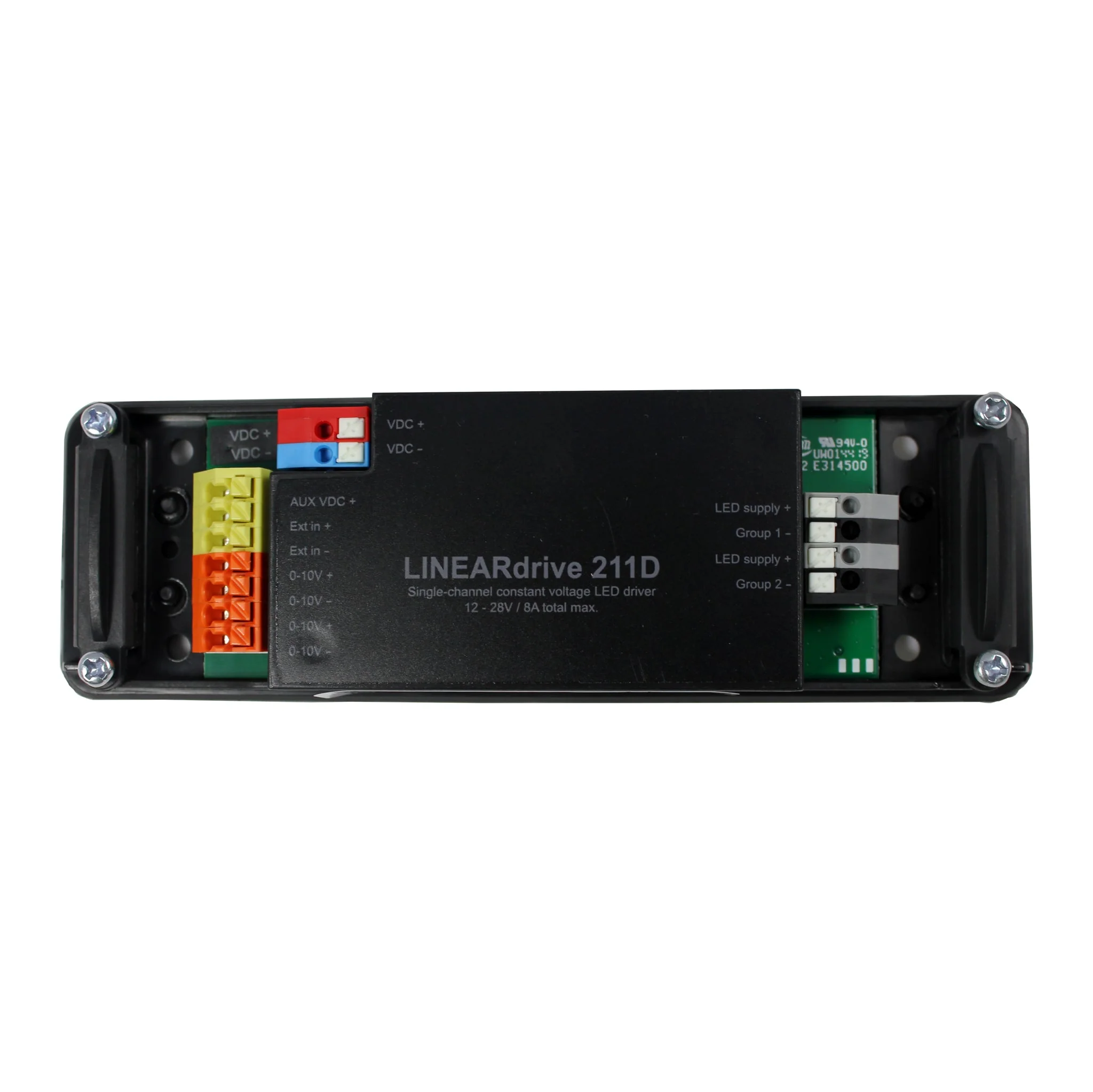

eldoLED LINEARdrive 211D – 8A (12/24v) 0-10v dimmable constant voltage LED driver
LINEARdrive 211D is a constant voltage LED driver. It features two LED outputs that can be controlled via 0-10V. Both LED outputs are controlled over the same channel, giving them the exact same behaviour.
The driver features wire restraints which make it perfectly suited for independent installations.
Features
- HydraDrive: provides the smoothest colour fades and dimming to dark
- Auxiliary power output
Benefits
- Exceptionally smooth colour fades
Input Characteristics
Nominal input voltage DC: 12 - 28V
Maximum input current: 8A, irrespective of PSU voltage
Output Characteristics
LED output load: 8A maximum, irrespective of whether using one or both LED outputs
Maximum LED output power: 200W
Number of LED outputs: 2
LED output voltage: 12 - 28V
Auxiliary output voltage: equal to input voltage
Auxiliary output current: 180mA @ 12V, 90mA @ 24V
Maximum auxiliary output power: 2W
Downloads
Datasheet LIN211D1
Specification submittal sheet
Wiring diagram
