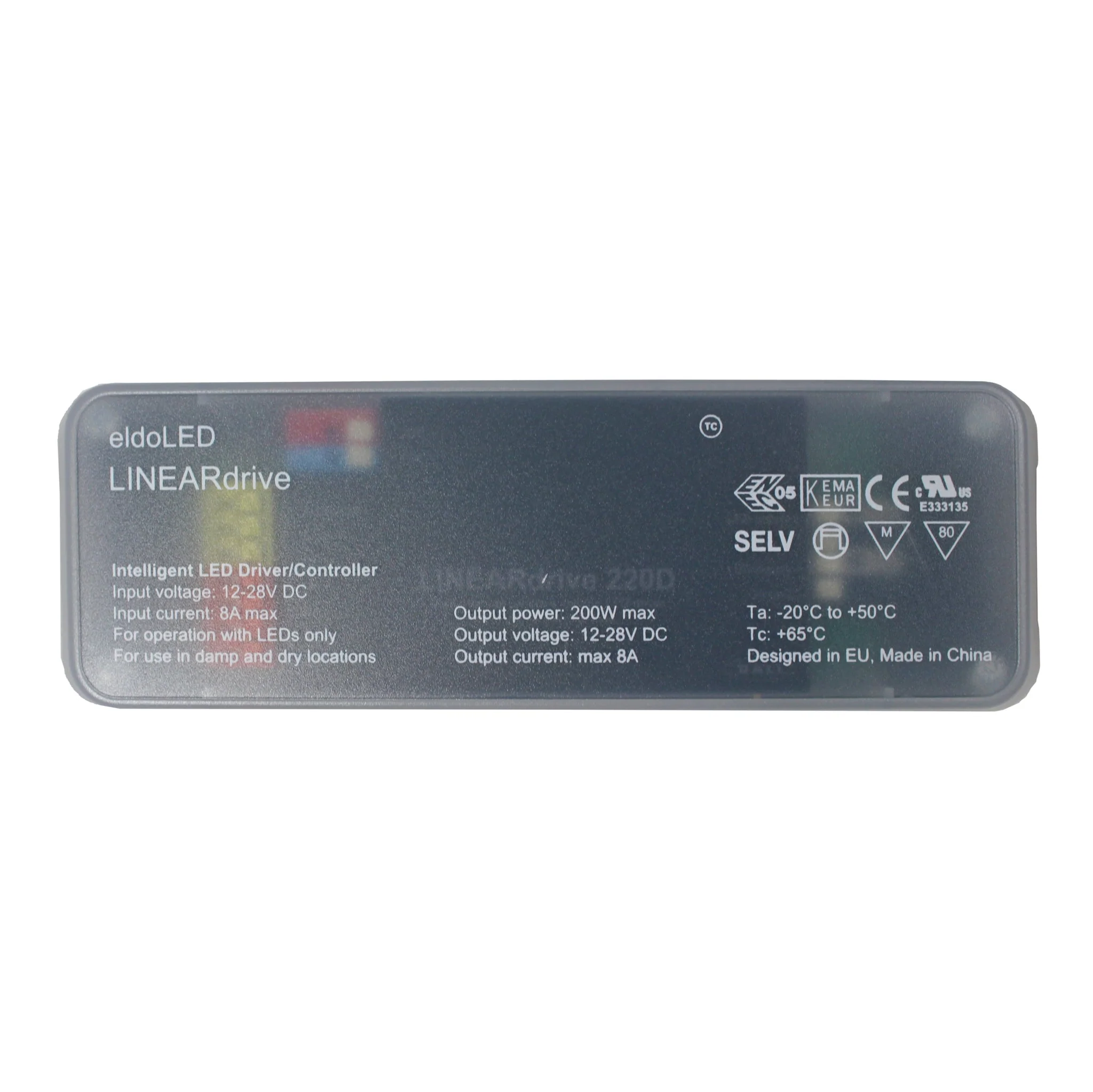

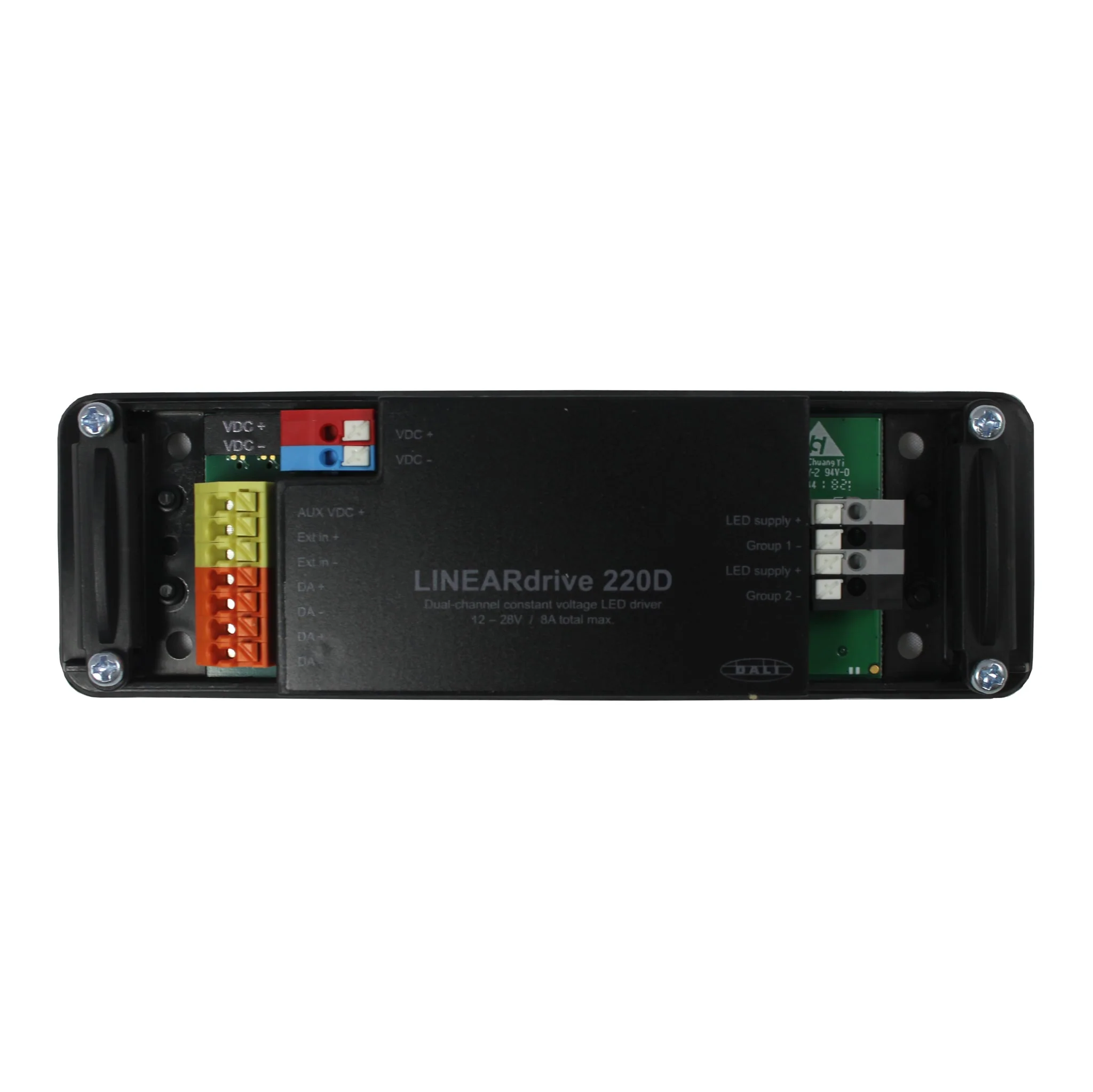

LINEARdrive 220D is a constant voltage LED driver. It features two LED outputs that can be controlled separately via DALI.

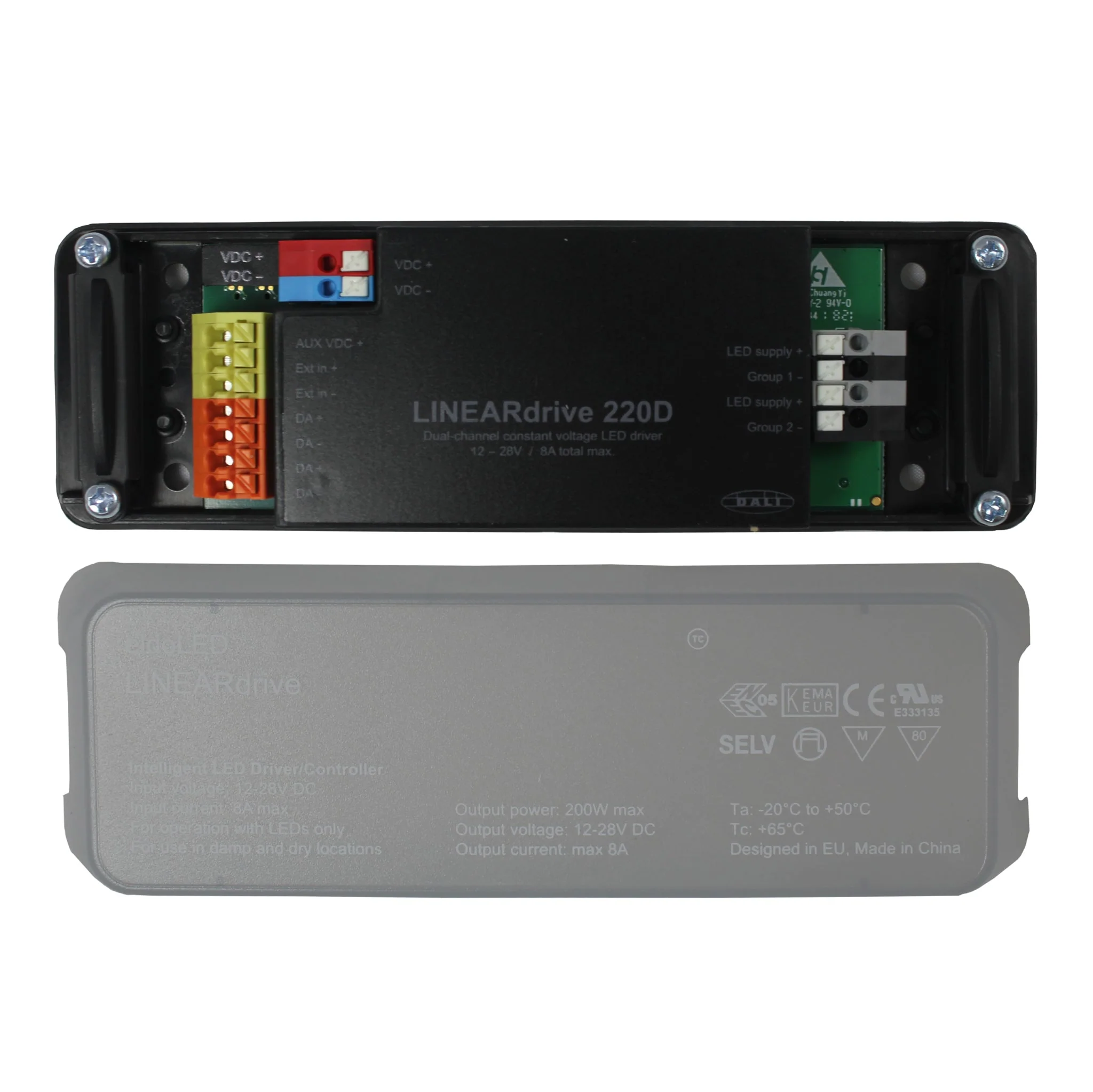

The driver features wire restraints which make it perfectly suited for independent installations.

Features

• HydraDrive: provides the smoothest colour fades and dimming to dark
• Auxiliary power output

Benefits

• Exceptionally smooth colour fades

Input Characteristics



Nominal input voltage DC: 12 - 28V
Maximum input current: 8A, irrespective of PSU voltage

Output Characteristics



LED output load: 8A maximum, irrespective of whether using one or both LED outputs
Maximum LED output power: 200W
Number of LED outputs: 2
LED output voltage: 12 - 28V
Auxiliary output voltage: equal to input voltage
Auxiliary output current: 180mA @ 12V, 90mA @ 24V
Maximum auxiliary output power: 2W
