ELED-150-D Series DALI Dimmable Constant Voltage LED Drivers 150W 12V or 24V

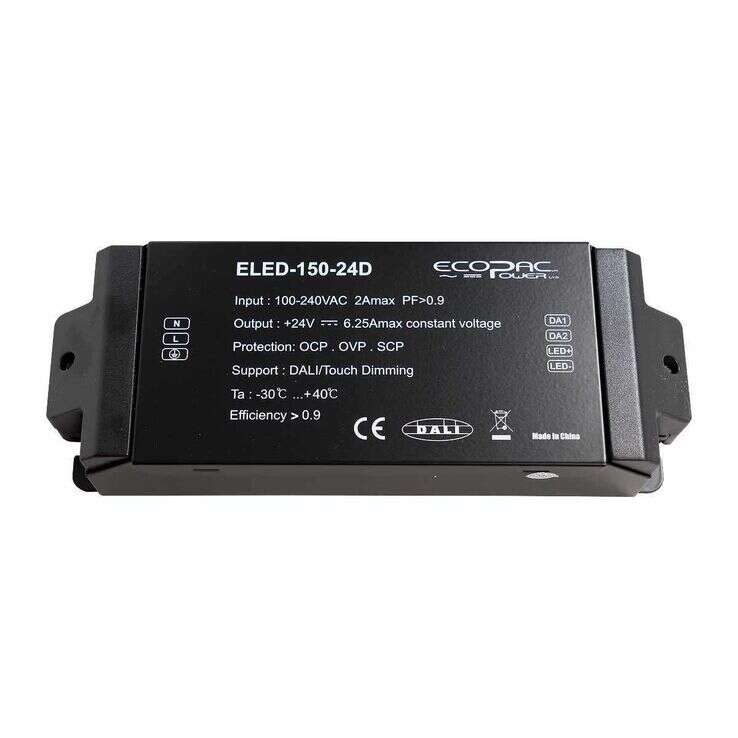

Product image 1

ELED-150-D Series DALI Dimmable Constant Voltage LED Drivers 150W 12V or 24V

ELED-150-D Series DALI Dimmable Constant Voltage LED Drivers 150W 12V or 24V

Download Datasheet

ELED-150-D Series Features:

Single channel constant voltage

Meets DALI Protocol IEC62386

Other features:

  • Wide input range: 100-240VAC
  • Support Touch-DIM function
  • Efficiency up to 92%
  • Built-in active PFC function
  • Protections: Short circuit/ Over current
  • Cooling by free air convection
  • IP20 design
  • Suitable for intelligent LED lighting
Wattage 150 150
Input Voltage 100-240VAC 100-240VAC
Output Current 11.25A 6.25A
Output Voltage 12V 24V
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 196 x 75 x 40 196 x 75 x 40
Working Temperature -20 - +50°C
Safety Standards IP20
Select Voltage
From $143.64
ELED-150-D Series DALI Dimmable Constant Voltage LED Drivers 150W 12V or 24V—
$143.64

Product Information

Shipping & Returns

Description

Download Datasheet

ELED-150-D Series Features:

Single channel constant voltage

Meets DALI Protocol IEC62386

Other features:

  • Wide input range: 100-240VAC
  • Support Touch-DIM function
  • Efficiency up to 92%
  • Built-in active PFC function
  • Protections: Short circuit/ Over current
  • Cooling by free air convection
  • IP20 design
  • Suitable for intelligent LED lighting
Wattage 150 150
Input Voltage 100-240VAC 100-240VAC
Output Current 11.25A 6.25A
Output Voltage 12V 24V
Output Voltage Options Single Single
DC output adjustment N/A N/A
Dimensions 196 x 75 x 40 196 x 75 x 40
Working Temperature -20 - +50°C
Safety Standards IP20
