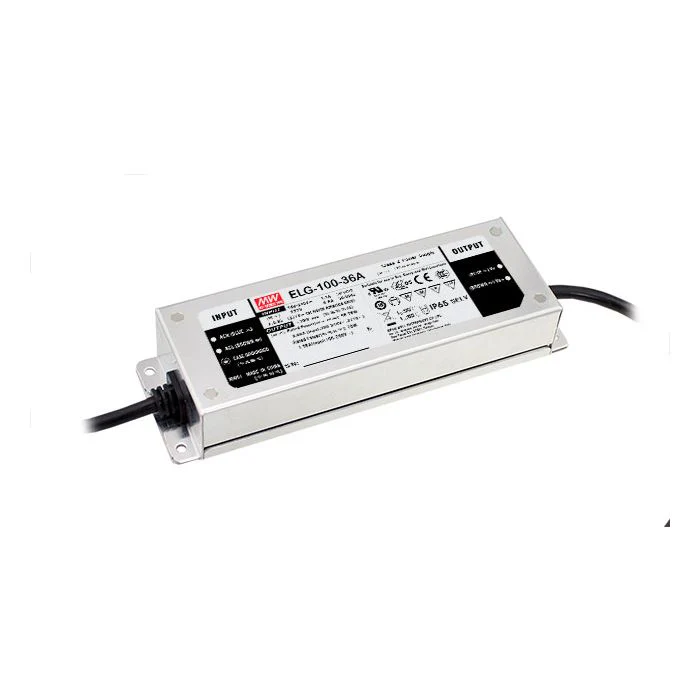

ELG-100-S - Mean Well ELG-100 Series LED Driver 95.6-96.12W 24-54V
Constant current mode output
Typical lifetime>50000 hours
Protections: Short circuit/ Over Voltage/ Over temperature
Other features:
Built-in active PFC function
No load power consumption <0.5W
IP67 / IP65 rated design for indoor or outdoor installations
Metal housing design
Various Dimming options
5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet ELG-100-SPEC.pdf
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet ELG-100-SPEC.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
ELG-100-S - Mean Well ELG-100 Series LED Driver 95.6-96.12W 24-54V
ELG-100-S - Mean Well ELG-100 Series LED Driver 95.6-96.12W 24-54V
Constant current mode output
Typical lifetime>50000 hours
Protections: Short circuit/ Over Voltage/ Over temperature
Other features:
Built-in active PFC function
No load power consumption <0.5W
IP67 / IP65 rated design for indoor or outdoor installations
Metal housing design
Various Dimming options
5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet ELG-100-SPEC.pdf
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet ELG-100-SPEC.pdf
$64.22
ELG-100-S - Mean Well ELG-100 Series LED Driver 95.6-96.12W 24-54V—
$64.22
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Constant current mode output
Typical lifetime>50000 hours
Protections: Short circuit/ Over Voltage/ Over temperature
Other features:
Built-in active PFC function
No load power consumption <0.5W
IP67 / IP65 rated design for indoor or outdoor installations
Metal housing design
Various Dimming options
5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet ELG-100-SPEC.pdf
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimensions 199x 63x 35.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "Derating Curve") PDF Datasheet ELG-100-SPEC.pdf
