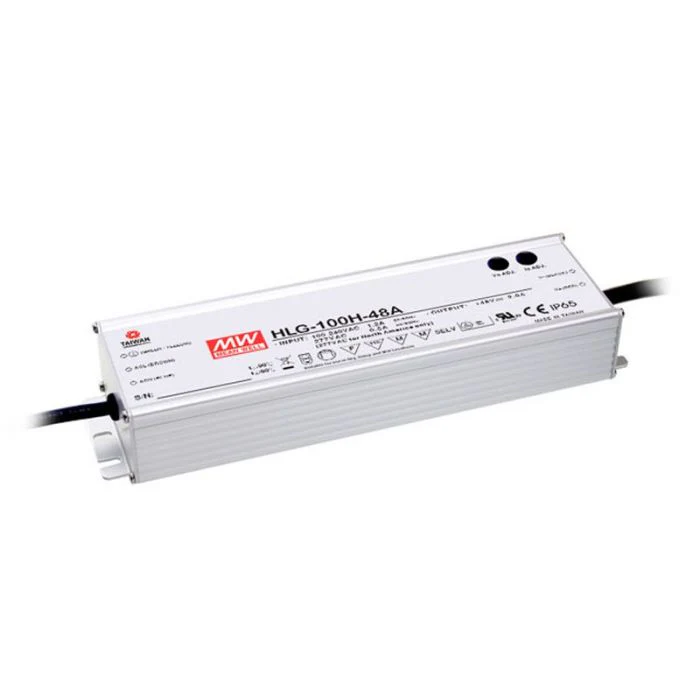

HLG-100H-BS - Mean Well HLG-100H B Series IP67 Rated LED Driver 96W 20V – 54V
IP67 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 94%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unitIP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 220x 68x 38.8 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-100H-spec_6.pdf
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 220x 68x 38.8 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-100H-spec_6.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HLG-100H-BS - Mean Well HLG-100H B Series IP67 Rated LED Driver 96W 20V – 54V
HLG-100H-BS - Mean Well HLG-100H B Series IP67 Rated LED Driver 96W 20V – 54V
IP67 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 94%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unitIP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 220x 68x 38.8 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-100H-spec_6.pdf
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 220x 68x 38.8 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-100H-spec_6.pdf
$34.55
Original: $98.72
-65%HLG-100H-BS - Mean Well HLG-100H B Series IP67 Rated LED Driver 96W 20V – 54V—
$98.72
$34.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
IP67 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 94%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unitIP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 220x 68x 38.8 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-100H-spec_6.pdf
More Information Manufacturer Mean Well Output Wattage (W) 96 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 220x 68x 38.8 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-100H-spec_6.pdf
