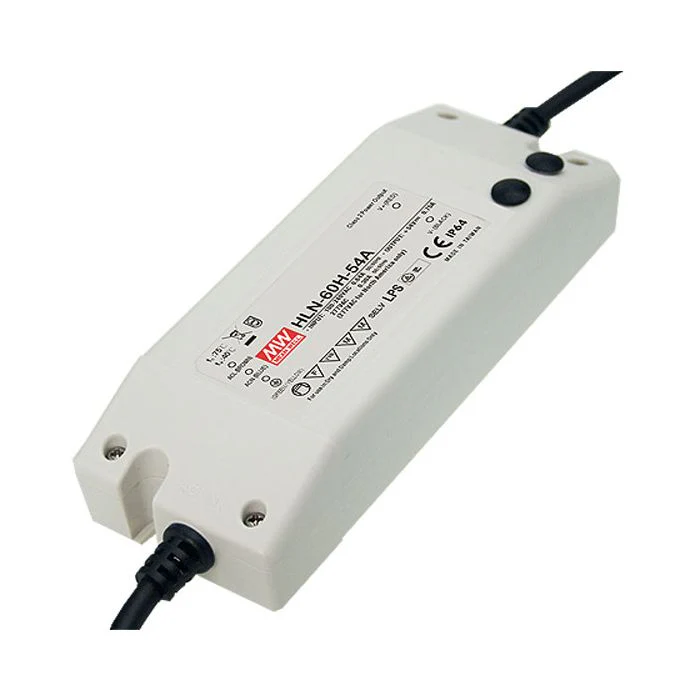

HLN-60H-S - Mean Well HLN-60H Series LED Driver 60W 12V – 54V
Built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance)Built-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit/ Over current/ Over voltage/ Over temperature Other features:Universal AC input (up to 305VAC) / Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLN-60H-spec_7.pdf
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLN-60H-spec_7.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HLN-60H-S - Mean Well HLN-60H Series LED Driver 60W 12V – 54V
HLN-60H-S - Mean Well HLN-60H Series LED Driver 60W 12V – 54V
Built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance)Built-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit/ Over current/ Over voltage/ Over temperature Other features:Universal AC input (up to 305VAC) / Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLN-60H-spec_7.pdf
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLN-60H-spec_7.pdf
$75.07
HLN-60H-S - Mean Well HLN-60H Series LED Driver 60W 12V – 54V—
$75.07
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance)Built-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit/ Over current/ Over voltage/ Over temperature Other features:Universal AC input (up to 305VAC) / Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLN-60H-spec_7.pdf
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLN-60H-spec_7.pdf
