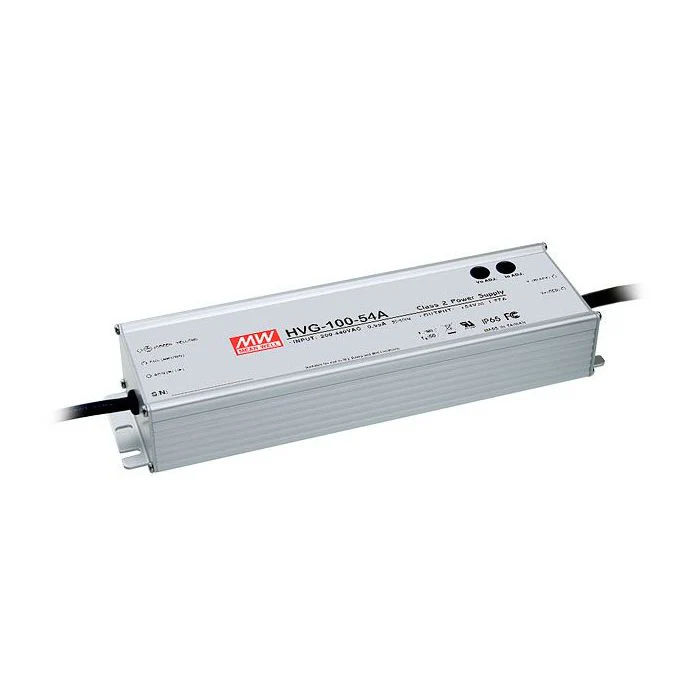

HVG-100-BS - Mean Well HVG-100B Series Dimmable LED Driver 100W 15V – 54V
Built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)Wide input range: 180~480VACProtections: Short circuit / Over voltage / Over temperatureOther features:High efficiency up to 92%Built-in active PFCCooling by free air convectionC.V. + C.C. mode designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP67 design 5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 113x 113x 66.5 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 113x 113x 66.5 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HVG-100-BS - Mean Well HVG-100B Series Dimmable LED Driver 100W 15V – 54V
HVG-100-BS - Mean Well HVG-100B Series Dimmable LED Driver 100W 15V – 54V
Built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)Wide input range: 180~480VACProtections: Short circuit / Over voltage / Over temperatureOther features:High efficiency up to 92%Built-in active PFCCooling by free air convectionC.V. + C.C. mode designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP67 design 5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 113x 113x 66.5 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 113x 113x 66.5 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec.pdf
$52.42
Original: $149.76
-65%HVG-100-BS - Mean Well HVG-100B Series Dimmable LED Driver 100W 15V – 54V—
$149.76
$52.42Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)Wide input range: 180~480VACProtections: Short circuit / Over voltage / Over temperatureOther features:High efficiency up to 92%Built-in active PFCCooling by free air convectionC.V. + C.C. mode designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP67 design 5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 113x 113x 66.5 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 100 Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 113x 113x 66.5 (LxWxH) Mm EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec.pdf
