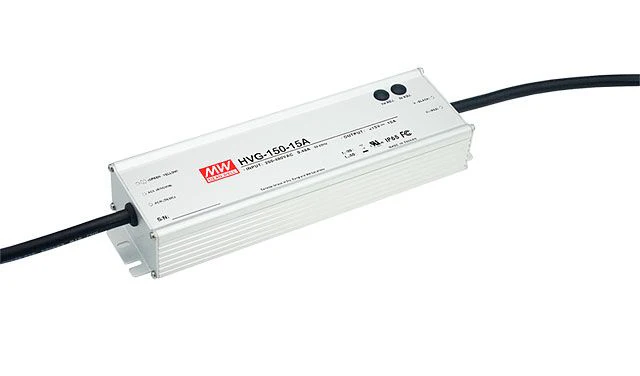

HVG-150-S - Mean Well HVG-150 Series LED Driver 150W 15V – 54V
Wide input range 180~528VACHigh efficiency up to 91.5%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Cooling by free air convection3 in 1 dimming function (0~10Vdc, 10V PWM signal or resistance)IP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Output Wattage (W) 150 Output Voltage Choose Option DC Output Adjustment 49~58 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
More Information Output Wattage (W) 150 Output Voltage Choose Option DC Output Adjustment 49~58 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HVG-150-S - Mean Well HVG-150 Series LED Driver 150W 15V – 54V
HVG-150-S - Mean Well HVG-150 Series LED Driver 150W 15V – 54V
Wide input range 180~528VACHigh efficiency up to 91.5%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Cooling by free air convection3 in 1 dimming function (0~10Vdc, 10V PWM signal or resistance)IP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Output Wattage (W) 150 Output Voltage Choose Option DC Output Adjustment 49~58 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
More Information Output Wattage (W) 150 Output Voltage Choose Option DC Output Adjustment 49~58 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
$153.84
HVG-150-S - Mean Well HVG-150 Series LED Driver 150W 15V – 54V—
$153.84
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wide input range 180~528VACHigh efficiency up to 91.5%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Cooling by free air convection3 in 1 dimming function (0~10Vdc, 10V PWM signal or resistance)IP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Output Wattage (W) 150 Output Voltage Choose Option DC Output Adjustment 49~58 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
More Information Output Wattage (W) 150 Output Voltage Choose Option DC Output Adjustment 49~58 Dimensions 245x 68x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC 254VDC~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVG-150-spec.pdf
