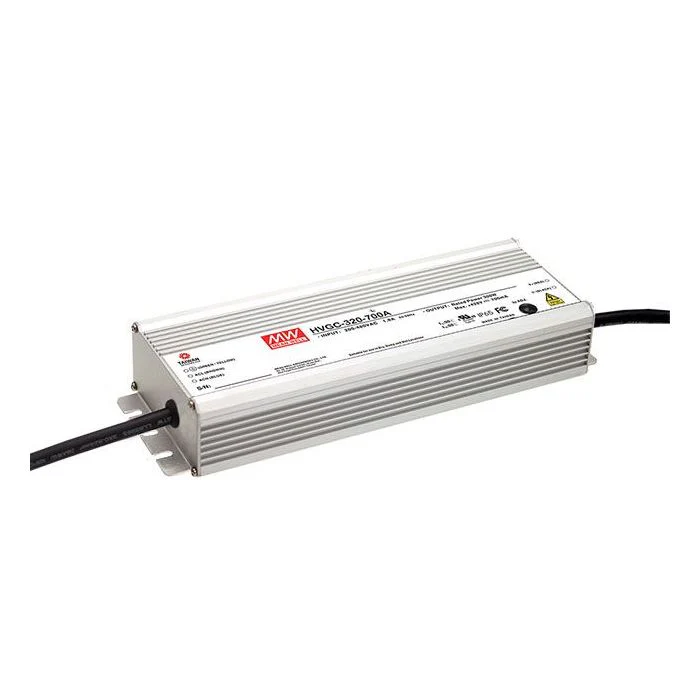

HVGC-320-BS - Mean Well HVGC-320 Series LED Driver 300-320W 700-2500mA
Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Constant current designCooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 262x 90x 43.8 (LxWxH) mm EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Safety Standards UL8750, CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90C PDF Datasheet HVGC-320-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 262x 90x 43.8 (LxWxH) mm EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Safety Standards UL8750, CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90C PDF Datasheet HVGC-320-spec.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HVGC-320-BS - Mean Well HVGC-320 Series LED Driver 300-320W 700-2500mA
HVGC-320-BS - Mean Well HVGC-320 Series LED Driver 300-320W 700-2500mA
Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Constant current designCooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 262x 90x 43.8 (LxWxH) mm EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Safety Standards UL8750, CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90C PDF Datasheet HVGC-320-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 262x 90x 43.8 (LxWxH) mm EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Safety Standards UL8750, CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90C PDF Datasheet HVGC-320-spec.pdf
$272.92
HVGC-320-BS - Mean Well HVGC-320 Series LED Driver 300-320W 700-2500mA—
$272.92
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Constant current designCooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry / damp / wet locations5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 262x 90x 43.8 (LxWxH) mm EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Safety Standards UL8750, CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90C PDF Datasheet HVGC-320-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 320 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 262x 90x 43.8 (LxWxH) mm EMC Standards Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A Safety Standards UL8750, CSA C22.2 No. 250. 13-12, IP65 or IP67 approved Output Voltage Options Single Working Temperature -40~+90C PDF Datasheet HVGC-320-spec.pdf
