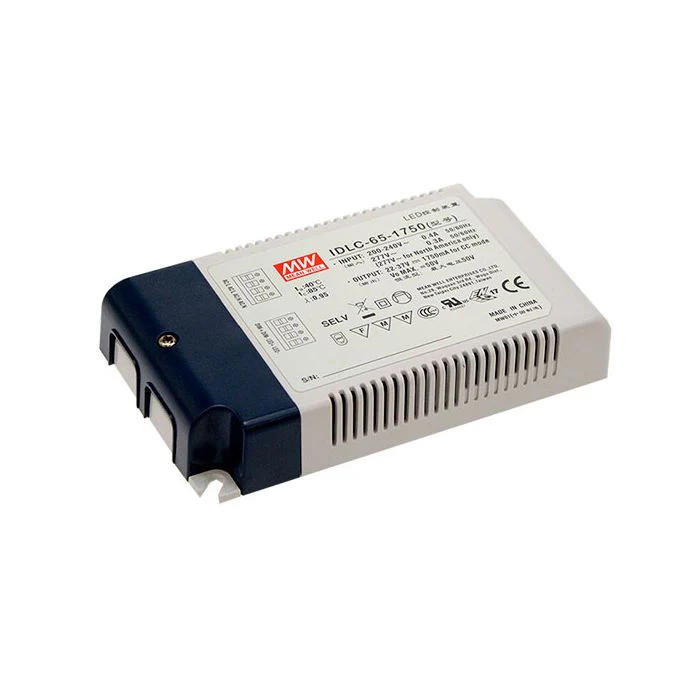

IDLC-65-S - Mean Well IDLC-65 Series LED Driver 63-65.1W 700-1750mA
Constant Current mode outputFunction options:2 in 1 dimming (dim-to-off); Auxilary DC outputProtections: Short circuit / Overload / Over voltage / Over TemperatureOther features:Flicker free designPlastic housing with class II designno load power consumption <0.5W (Blank-Type)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 130x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-65.pdf
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 130x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-65.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
IDLC-65-S - Mean Well IDLC-65 Series LED Driver 63-65.1W 700-1750mA
IDLC-65-S - Mean Well IDLC-65 Series LED Driver 63-65.1W 700-1750mA
Constant Current mode outputFunction options:2 in 1 dimming (dim-to-off); Auxilary DC outputProtections: Short circuit / Overload / Over voltage / Over TemperatureOther features:Flicker free designPlastic housing with class II designno load power consumption <0.5W (Blank-Type)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 130x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-65.pdf
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 130x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-65.pdf
$38.71
Original: $110.60
-65%IDLC-65-S - Mean Well IDLC-65 Series LED Driver 63-65.1W 700-1750mA—
$110.60
$38.71Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Constant Current mode outputFunction options:2 in 1 dimming (dim-to-off); Auxilary DC outputProtections: Short circuit / Overload / Over voltage / Over TemperatureOther features:Flicker free designPlastic housing with class II designno load power consumption <0.5W (Blank-Type)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 130x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-65.pdf
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 130x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-65.pdf
