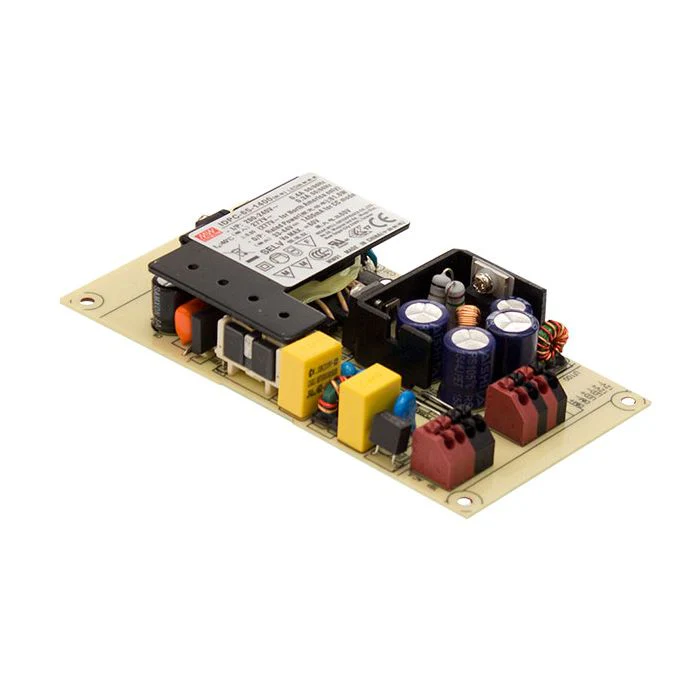

IDPC-65-S - Mean Well IDPC-65 Series LED Driver 63-65.1W 700-1750mA
Constant Current mode outputFunction options:2 in 1 dimming (dim-to-off); Auxilary DC outputProtections: Short circuit / Overload / Over voltage / Over TemperatureOther features:Flicker free designPCB type designno load power consumption <0.5W (Blank-Type)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 120x 66.5x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+40°C PDF Datasheet IDPC-65-SPEC.pdf
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 120x 66.5x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+40°C PDF Datasheet IDPC-65-SPEC.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
IDPC-65-S - Mean Well IDPC-65 Series LED Driver 63-65.1W 700-1750mA
IDPC-65-S - Mean Well IDPC-65 Series LED Driver 63-65.1W 700-1750mA
Constant Current mode outputFunction options:2 in 1 dimming (dim-to-off); Auxilary DC outputProtections: Short circuit / Overload / Over voltage / Over TemperatureOther features:Flicker free designPCB type designno load power consumption <0.5W (Blank-Type)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 120x 66.5x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+40°C PDF Datasheet IDPC-65-SPEC.pdf
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 120x 66.5x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+40°C PDF Datasheet IDPC-65-SPEC.pdf
$16.70
Original: $47.70
-65%IDPC-65-S - Mean Well IDPC-65 Series LED Driver 63-65.1W 700-1750mA—
$47.70
$16.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Constant Current mode outputFunction options:2 in 1 dimming (dim-to-off); Auxilary DC outputProtections: Short circuit / Overload / Over voltage / Over TemperatureOther features:Flicker free designPCB type designno load power consumption <0.5W (Blank-Type)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 120x 66.5x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+40°C PDF Datasheet IDPC-65-SPEC.pdf
More Information Manufacturer Mean Well Output Wattage (W) 63 Output Current Choose Option Dimmable (Type) Yes Dimensions 120x 66.5x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+40°C PDF Datasheet IDPC-65-SPEC.pdf
