Liteplan DLP/1 , obsolete replaced by the ADM/1-K - DISCONTINUED

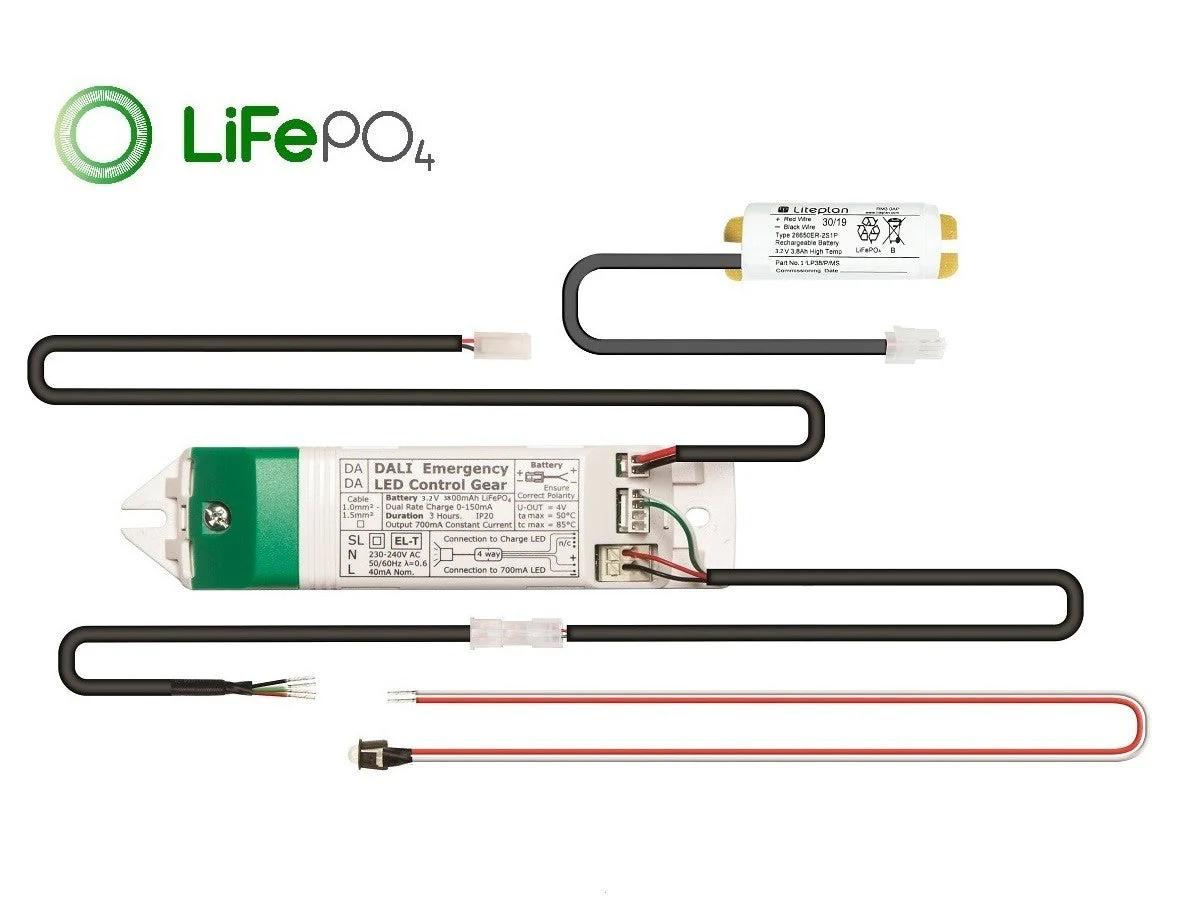

Product image 1

Liteplan DLP/1 , obsolete replaced by the ADM/1-K - DISCONTINUED

Liteplan DLP/1 , obsolete replaced by the ADM/1-K - DISCONTINUED

Obsolete, this how been replaced with the ADM/1-K which will be supplied with a new smaller lithium battery

Replacement



A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The DLP/1 operates a single 4V chip at 550mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.

This range operates with LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.

DLP/1 DALI Addressable Range

Specifications

    • For Integral Use with Slim Batteries
    • High Temperature Tolerance Batteries
    • Extra Long Life LiFePO4 Batteries
    • DALI Self-Test Module
    • High Output (700mA) Version Available
  •   DLP/1
    Input Voltage 230-240 Volts AC – 50/60Hz
    Power Rating

    Charging Maintained: 32mA λ = 0.6

    Standby Non-Maintained: 8mA λ = 0.15
    Em. Duration 3-hours
    Battery Type IRF26650 LiFePO4
    Battery Voltage 3.2V
    Battery Capacity 3.8Ah
    Charge Current Dual Rate 0-225mA
    Discharge Current 700mA nominal
    Recharge Time 24-hours
    TC Max 60°C Module / 55°C Battery
    Output Load 1 x 2W
    Output Current 550mA
    Module Dims. 149mm x 35mm x 28mm
    Battery Dimensions (with end caps) 220mm long x 22mm wide x 24mm high
    Fixing Centres 132mm x M4
    Module Weight 0.1Kg
    Battery Weight 0.11Kg
