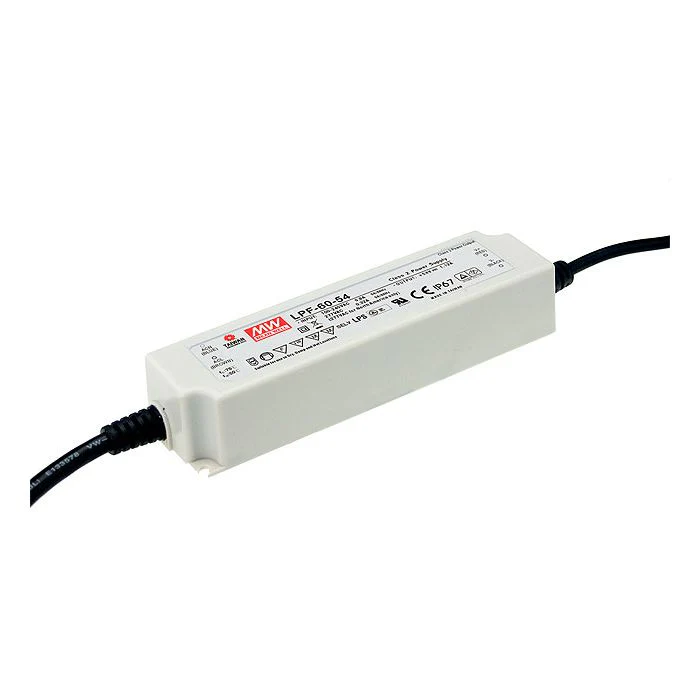

LPF-60-S - Mean Well LPF-60 Series LED Driver 60W 12V – 54V
Built-in active PFC functionFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC) / Full RangeFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimensions 162 x 43.5 x 32 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet LPF-60-spec_1.pdf
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimensions 162 x 43.5 x 32 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet LPF-60-spec_1.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LPF-60-S - Mean Well LPF-60 Series LED Driver 60W 12V – 54V
LPF-60-S - Mean Well LPF-60 Series LED Driver 60W 12V – 54V
Built-in active PFC functionFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC) / Full RangeFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimensions 162 x 43.5 x 32 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet LPF-60-spec_1.pdf
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimensions 162 x 43.5 x 32 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet LPF-60-spec_1.pdf
$58.78
LPF-60-S - Mean Well LPF-60 Series LED Driver 60W 12V – 54V—
$58.78
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in active PFC functionFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC) / Full RangeFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimensions 162 x 43.5 x 32 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet LPF-60-spec_1.pdf
More Information Output Wattage (W) 60 Output Voltage Choose Option Dimensions 162 x 43.5 x 32 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet LPF-60-spec_1.pdf
