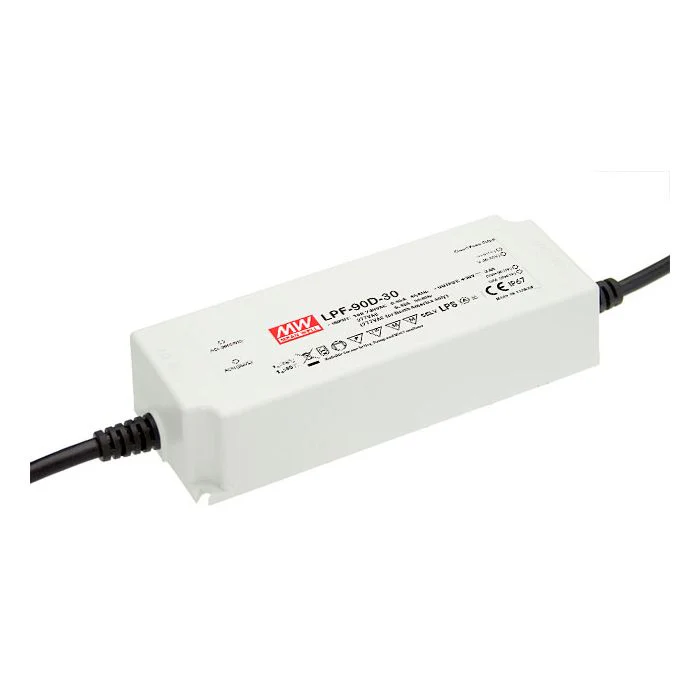

LPF-90D-S - Mean Well DLPF-90D Series immable LED Driver 90W 15V – 54V
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC) / Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Output Wattage (W) 90 Output Voltage Choose Option EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_8.pdf
More Information Output Wattage (W) 90 Output Voltage Choose Option EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_8.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LPF-90D-S - Mean Well DLPF-90D Series immable LED Driver 90W 15V – 54V
LPF-90D-S - Mean Well DLPF-90D Series immable LED Driver 90W 15V – 54V
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC) / Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Output Wattage (W) 90 Output Voltage Choose Option EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_8.pdf
More Information Output Wattage (W) 90 Output Voltage Choose Option EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_8.pdf
$30.67
Original: $87.62
-65%LPF-90D-S - Mean Well DLPF-90D Series immable LED Driver 90W 15V – 54V—
$87.62
$30.67Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC) / Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Output Wattage (W) 90 Output Voltage Choose Option EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_8.pdf
More Information Output Wattage (W) 90 Output Voltage Choose Option EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_8.pdf
