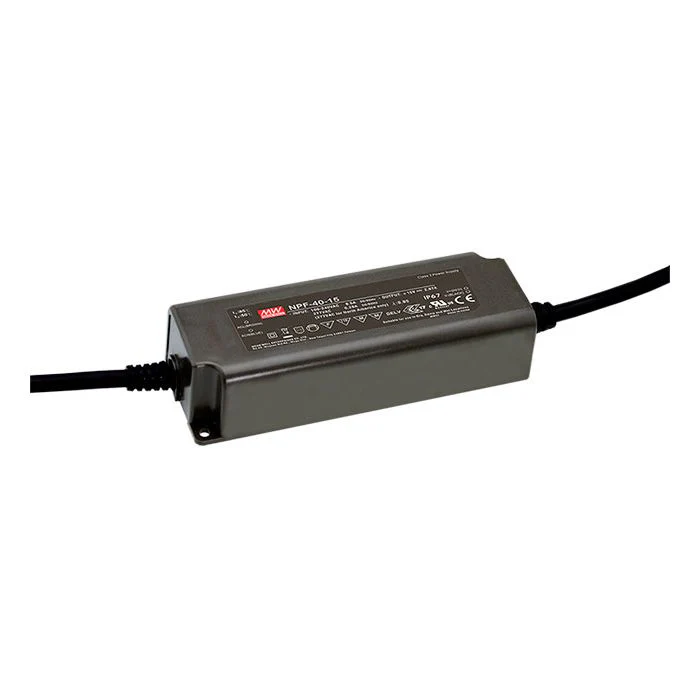

NPF-40-S - Mean Well NPF-40 Series IP67 Rated LED Driver 0.76-3.34A 40-41W
Fully encapsulated with IP67 levelProtections: Short circuit/ Over Current/ Over voltage/ Over temperatureOther features:Universal AC input (up to 305VAC) / Full RangeHigh efficiency up to 91%Cooling by free air convectionBuilt-in active PFC functionFully isolated plastic caseClass II power unit, no FGClass 2 power unitSuitable for dry, damp, wet locationNo load power consumption <0.15W5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-40-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-40-spec.pdf
Product Information
Product Information
Shipping & Returns
Shipping & Returns
NPF-40-S - Mean Well NPF-40 Series IP67 Rated LED Driver 0.76-3.34A 40-41W
NPF-40-S - Mean Well NPF-40 Series IP67 Rated LED Driver 0.76-3.34A 40-41W
Fully encapsulated with IP67 levelProtections: Short circuit/ Over Current/ Over voltage/ Over temperatureOther features:Universal AC input (up to 305VAC) / Full RangeHigh efficiency up to 91%Cooling by free air convectionBuilt-in active PFC functionFully isolated plastic caseClass II power unit, no FGClass 2 power unitSuitable for dry, damp, wet locationNo load power consumption <0.15W5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-40-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-40-spec.pdf
$18.39
Original: $52.53
-65%NPF-40-S - Mean Well NPF-40 Series IP67 Rated LED Driver 0.76-3.34A 40-41W—
$52.53
$18.39Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fully encapsulated with IP67 levelProtections: Short circuit/ Over Current/ Over voltage/ Over temperatureOther features:Universal AC input (up to 305VAC) / Full RangeHigh efficiency up to 91%Cooling by free air convectionBuilt-in active PFC functionFully isolated plastic caseClass II power unit, no FGClass 2 power unitSuitable for dry, damp, wet locationNo load power consumption <0.15W5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-40-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-40-spec.pdf
