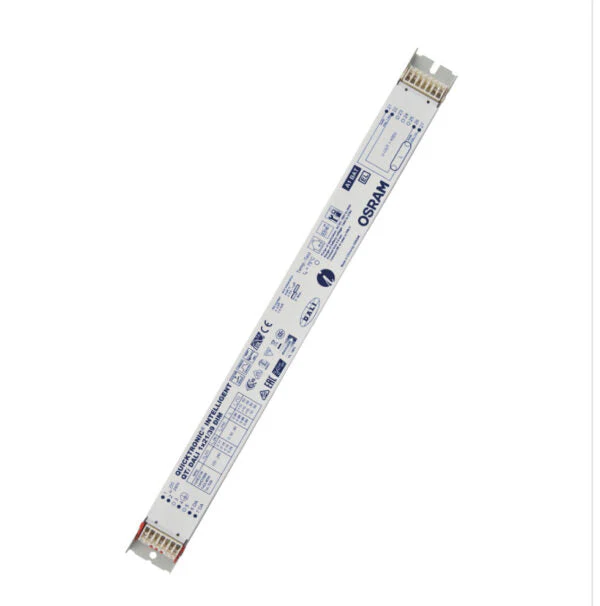

Osram QTi DALI 1X21/39 DIM 4050300870366
Osram QTi DALI 1X21/39 DIM 4050300870366
Product family features
- Corridor function for direct connection of ECG to common motion sensor
- Corridor function with pre-programmed light program
- Touch DIM function for free parameterization of light value and turn on time
- Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
- Fit for emergency function for automatic detection of emergency lighting by ECG
- Very low standby power consumption: < 0.5 W
- Lifetime: > 100,000 h (for T = 65 °C at Tc)
- Very high number of switching cycles: up to 300,000
- Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
- POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
- Line frequency: 0 Hz, 50…60 Hz, rectified AC
Product family benefits
– System+ Guarantee available
– Easy integration in luminaire thanks to same dimensions like DALI GI ECG _ Touch DIM function for easy and inexpensive dimming of several ECGs
– Same luminous flux with direct and alternating current
– Dimming of amalgam lamps without flickering or reduced lifespan
– Automatic restart after lamp replacement
DALI product features
– Control via the DALI interface
– Compliance with the DALI Version-1 and IEC 60929
– Control input protected against overvoltage and polarity reversal (OSRAM ECG)
Touch DIM and Touch DIM Sensor function
– Manual dimming without controller and with standard switches
-Including memory function (double click) and soft start
Product Data Sheet
OSQNDA121.pdf
