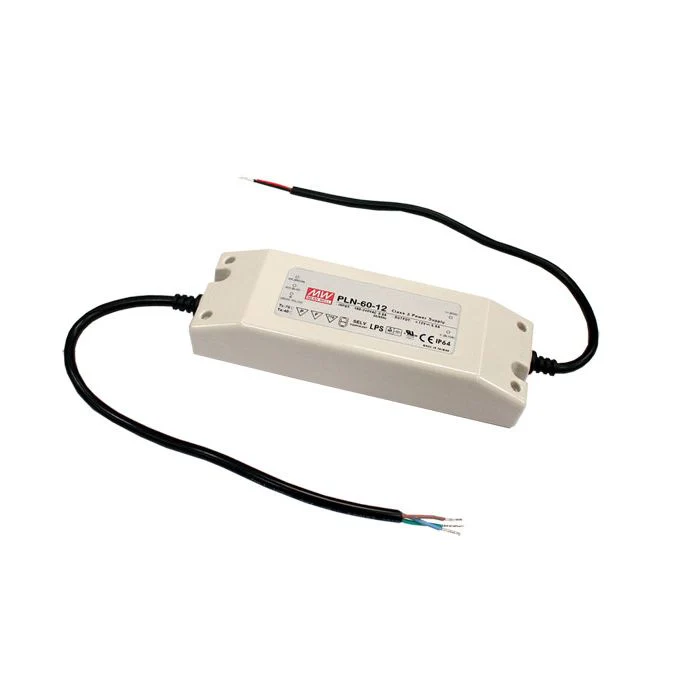

PLN-60-S - Mean Well PLN-60 Series LED Driver 60W 12V – 48V
Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input / Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit/ Pass LPSIsolation class II, no F.G.User adjustable output voltage and current protection levelCooling by free air convection2 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EEN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -20~+70°C PDF Datasheet PLN-60-SPEC.PDF
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EEN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -20~+70°C PDF Datasheet PLN-60-SPEC.PDF
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PLN-60-S - Mean Well PLN-60 Series LED Driver 60W 12V – 48V
PLN-60-S - Mean Well PLN-60 Series LED Driver 60W 12V – 48V
Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input / Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit/ Pass LPSIsolation class II, no F.G.User adjustable output voltage and current protection levelCooling by free air convection2 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EEN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -20~+70°C PDF Datasheet PLN-60-SPEC.PDF
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EEN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -20~+70°C PDF Datasheet PLN-60-SPEC.PDF
$72.85
PLN-60-S - Mean Well PLN-60 Series LED Driver 60W 12V – 48V—
$72.85
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input / Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit/ Pass LPSIsolation class II, no F.G.User adjustable output voltage and current protection levelCooling by free air convection2 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EEN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -20~+70°C PDF Datasheet PLN-60-SPEC.PDF
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EEN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -20~+70°C PDF Datasheet PLN-60-SPEC.PDF
