PWM-120-12DA2 or 24DA2 Dali , please select Voltage
PWM-120-DA2 Series Features:

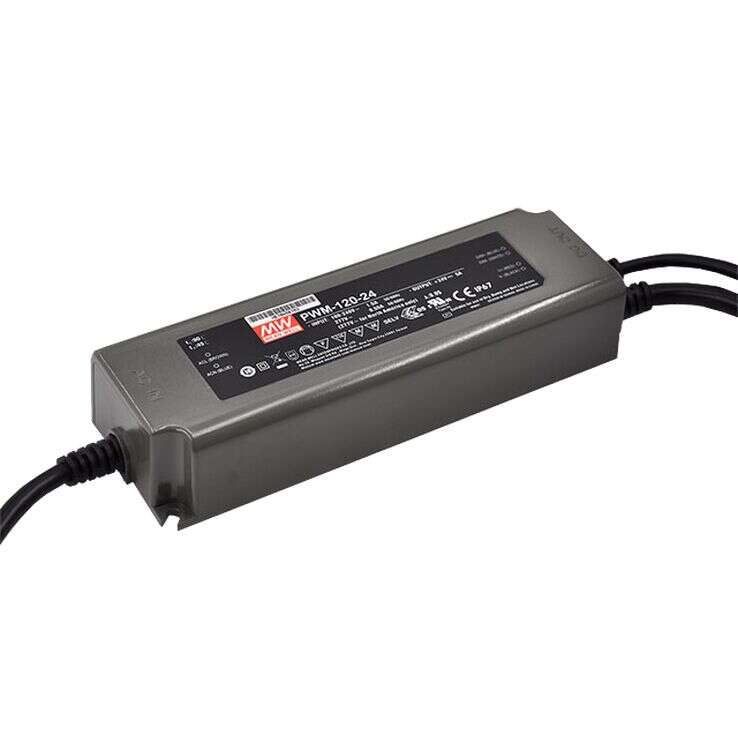

PWM-120 DALI 2 series is a DALI Dimmable LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.
Fully compatible with both DALI2 and DALI.
Features:
- Constant voltage PWM style output
- Emergency lighting application is available according to IEC61347-2-13
- Built-in active PFC function and class II design
- No load power consumption <0.5W/standby power consumption <0.5W(DA/DA2-type)
- Fully encapsulated with IP67 level
- Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
- Minimum dimming level 0.2% for DALI type
- Typical lifetime >50000 hours and 5 years warranty
| Wattage | 120 | 120 |
| Input Voltage | 90-305VAC, 127-431VDC | 90-305VAC, 127-431VDC |
| Output Current | 10A | 5A |
| Output Voltage | 12V | 24V |
| Dimensions | 191*63*37.5mm | 150x 53x 35 |
| Working Temperature | -40~+85°C | |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PWM-120-12DA2 or 24DA2 Dali , please select Voltage
PWM-120-12DA2 or 24DA2 Dali , please select Voltage
PWM-120-DA2 Series Features:
PWM-120 DALI 2 series is a DALI Dimmable LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.
Fully compatible with both DALI2 and DALI.
Features:
- Constant voltage PWM style output
- Emergency lighting application is available according to IEC61347-2-13
- Built-in active PFC function and class II design
- No load power consumption <0.5W/standby power consumption <0.5W(DA/DA2-type)
- Fully encapsulated with IP67 level
- Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
- Minimum dimming level 0.2% for DALI type
- Typical lifetime >50000 hours and 5 years warranty
| Wattage | 120 | 120 |
| Input Voltage | 90-305VAC, 127-431VDC | 90-305VAC, 127-431VDC |
| Output Current | 10A | 5A |
| Output Voltage | 12V | 24V |
| Dimensions | 191*63*37.5mm | 150x 53x 35 |
| Working Temperature | -40~+85°C | |
