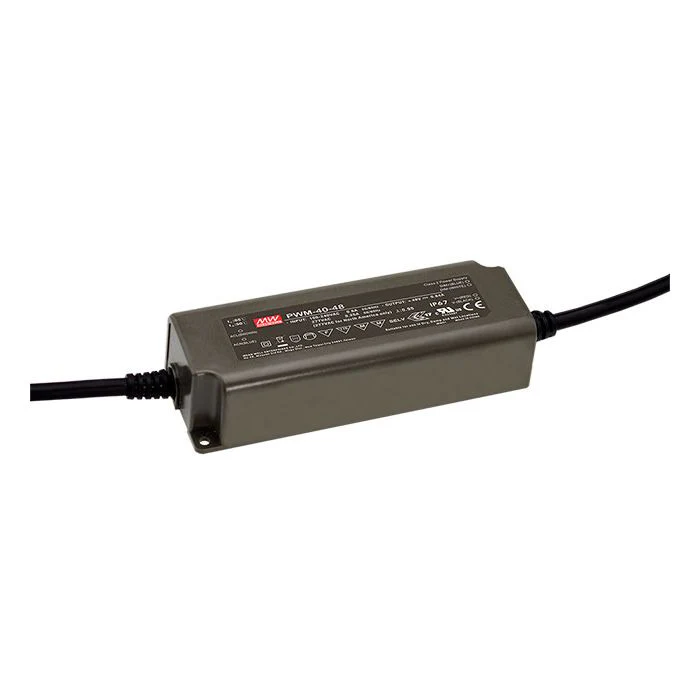

PWM-40-S - Mean Well PWM-40 Series LED Driver 40W, 12V – 48V
Universal AC input / Full range (up to 305VAC)Built-in active PFC functionConstant voltage PWM style outputBuilt-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)Dimming range : 0 - 100%High efficiency up to 90%Protections: Short circuit / Over load / Over voltage / Over temperatureClass II power unit, no FGClass 2 power unitSuitable for dry / damp / wet locationsNo load power consumption <0.5W5 years warranty
More Information Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved. Output Voltage Options Single Working Temperature -10°C~+60°C PDF Datasheet PWM-40-SPEC_3.PDF
More Information Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved. Output Voltage Options Single Working Temperature -10°C~+60°C PDF Datasheet PWM-40-SPEC_3.PDF
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PWM-40-S - Mean Well PWM-40 Series LED Driver 40W, 12V – 48V
PWM-40-S - Mean Well PWM-40 Series LED Driver 40W, 12V – 48V
Universal AC input / Full range (up to 305VAC)Built-in active PFC functionConstant voltage PWM style outputBuilt-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)Dimming range : 0 - 100%High efficiency up to 90%Protections: Short circuit / Over load / Over voltage / Over temperatureClass II power unit, no FGClass 2 power unitSuitable for dry / damp / wet locationsNo load power consumption <0.5W5 years warranty
More Information Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved. Output Voltage Options Single Working Temperature -10°C~+60°C PDF Datasheet PWM-40-SPEC_3.PDF
More Information Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved. Output Voltage Options Single Working Temperature -10°C~+60°C PDF Datasheet PWM-40-SPEC_3.PDF
$51.44
PWM-40-S - Mean Well PWM-40 Series LED Driver 40W, 12V – 48V—
$51.44
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Universal AC input / Full range (up to 305VAC)Built-in active PFC functionConstant voltage PWM style outputBuilt-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)Dimming range : 0 - 100%High efficiency up to 90%Protections: Short circuit / Over load / Over voltage / Over temperatureClass II power unit, no FGClass 2 power unitSuitable for dry / damp / wet locationsNo load power consumption <0.5W5 years warranty
More Information Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved. Output Voltage Options Single Working Temperature -10°C~+60°C PDF Datasheet PWM-40-SPEC_3.PDF
More Information Output Wattage (W) 40 Output Voltage Choose Option Dimensions 150x 53x 35mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A Safety Standards UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved. Output Voltage Options Single Working Temperature -10°C~+60°C PDF Datasheet PWM-40-SPEC_3.PDF
