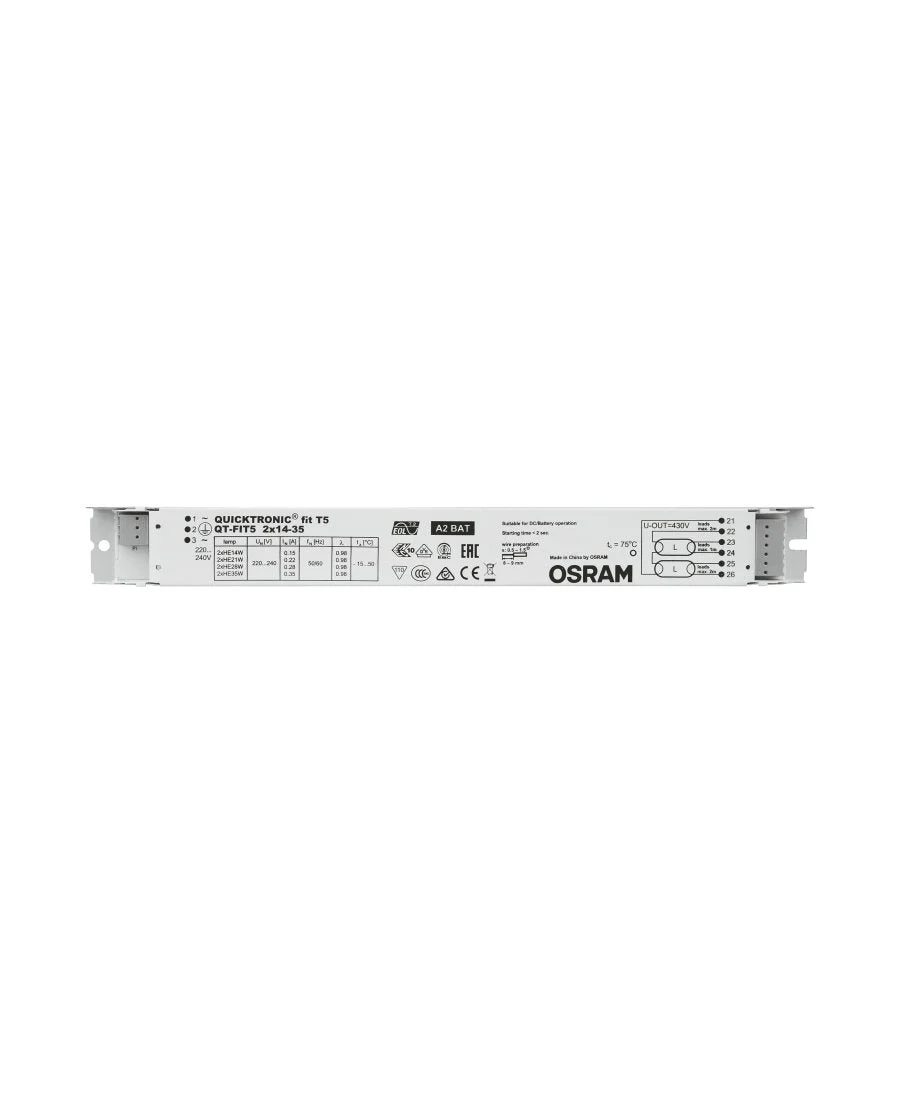

QT-FIT5 2X14…35 2 x 14W 28W 35W
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
- Open-plan offices, corridors and storage rooms
- Public buildings
- Strip lighting
- Suitable for luminaires of protection class I
- Modernization of existing systems
Technical Data
Electrical data
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Input voltage DC
198…264 V
Maximum output power
2 x 35 W
Efficiency in full-load
91 %
Operating frequency
40…50 kHz
Light technical data
Starting time
2.0 s
Dimensions & weight
Length
280.0 mm
Width
30.0 mm
Height
21.0 mm
Mounting hole spacing, length
270.0 mm
Product weight
181.00 g
Cable cross-section, output side
0.5…1.5 mm²
Cable cross-section, input side
0.5…1.5 mm²
Temperatures & operating conditions
Ambient temperature range
-15…+50 °C
Permitted rel. humidity during operation
5…85 %
Additional product data
Suitable for lamp power (2 lamps)
14…35 W
Capabilities
End of lamp life safety shutdown
EOL T.2
Suitable for emergency lighting
No
Suitable for fixtures with prot. class
I
Max. cable length to lamp/LED module
2.0 m / 1.0 m
Dimmable
No
Intended for no-load operation
No
Certificates & standards
Approval marks – approval
VDE / ENEC 10 / VDE-EMC
EEI – Energy Label
A2 BAT
Standards
Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547
Type of protection
IP20
Protection class
I
Logistical data
Commodity code
850410809000
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
14-03-2023
Primary Article Identifier
4008321971258
Candidate List Substance 1
No declarable substances contained
Declaration No. in SCIP database
No declarable substances contained
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
|---|---|---|---|---|
| 4008321971258 | UNV
|
1 | 280mm x 30mm x 21mm | 181.00g |
| 4008321971265 | VS
|
20 | 303mm x 101mm x 159mm | 3786.00g |
