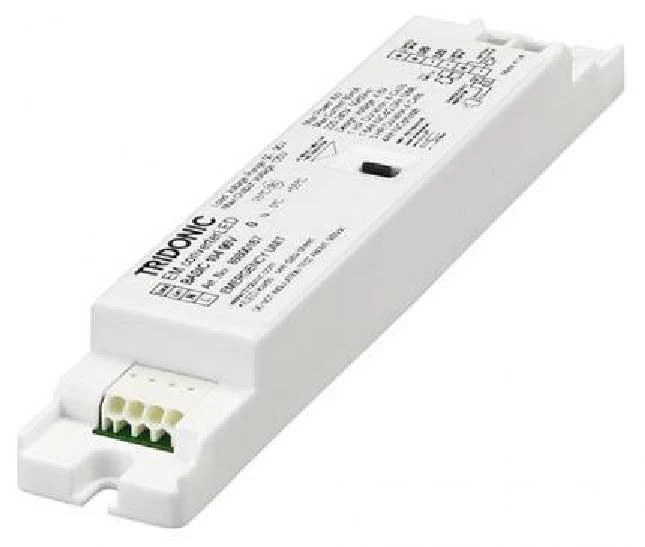

Tridonic 89800708 - EMconverterLED BASIC 202A MH/LiFePO4 50V EM conversion
- Self contained emergency lighting LED driver for manual testing
- For LED modules with a forward voltage of 10 – 54 V
- SELV for output voltage < 60 V DC
- Low profile casing (21 x 30 mm cross-section)
- For luminaire installation
- Compatible with Tridonic's LLE FLEX modules (ADV, EXC)
- Nominal lifetime up to 100,000 h
- EM = Emergency
-
5 years guarantee
Properties
- Non maintained operation
- 1 or 3 h rated duration
- Operating time selectable with plug (duration link)
- Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility)
- 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
- Automatic shutdown of output if LED load is out of range
- Constant power output
- Maximum light output for all LED modules
- Electronic charge system
- Deep discharge protection
- Short-circuit-proof battery connection
- Polarity reversal protection for battery provided by 3-pole connector
- Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Tridonic 89800708 - EMconverterLED BASIC 202A MH/LiFePO4 50V EM conversion
Tridonic 89800708 - EMconverterLED BASIC 202A MH/LiFePO4 50V EM conversion
- Self contained emergency lighting LED driver for manual testing
- For LED modules with a forward voltage of 10 – 54 V
- SELV for output voltage < 60 V DC
- Low profile casing (21 x 30 mm cross-section)
- For luminaire installation
- Compatible with Tridonic's LLE FLEX modules (ADV, EXC)
- Nominal lifetime up to 100,000 h
- EM = Emergency
-
5 years guarantee
Properties
- Non maintained operation
- 1 or 3 h rated duration
- Operating time selectable with plug (duration link)
- Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility)
- 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
- Automatic shutdown of output if LED load is out of range
- Constant power output
- Maximum light output for all LED modules
- Electronic charge system
- Deep discharge protection
- Short-circuit-proof battery connection
- Polarity reversal protection for battery provided by 3-pole connector
- Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)
$30.04
Original: $85.82
-65%Tridonic 89800708 - EMconverterLED BASIC 202A MH/LiFePO4 50V EM conversion—
$85.82
$30.04Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Self contained emergency lighting LED driver for manual testing
- For LED modules with a forward voltage of 10 – 54 V
- SELV for output voltage < 60 V DC
- Low profile casing (21 x 30 mm cross-section)
- For luminaire installation
- Compatible with Tridonic's LLE FLEX modules (ADV, EXC)
- Nominal lifetime up to 100,000 h
- EM = Emergency
-
5 years guarantee
Properties
- Non maintained operation
- 1 or 3 h rated duration
- Operating time selectable with plug (duration link)
- Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility)
- 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
- Automatic shutdown of output if LED load is out of range
- Constant power output
- Maximum light output for all LED modules
- Electronic charge system
- Deep discharge protection
- Short-circuit-proof battery connection
- Polarity reversal protection for battery provided by 3-pole connector
- Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)
