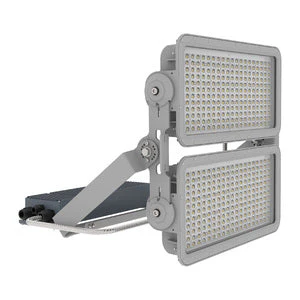

Vermillion 1200W High-power LED high mast floodlight, DAL12 & DMX, 5000k, Beam angle Asymmetric 50 (120 ° x 50 °)
Description
Modular construction allows each module to be angled independently with High efficiency of 160lm/W. DAL12 and DMX compatible driver included. IP66 and IK09, Multiple options for optics including asymmetric options. Programmable driver that can be set to required wattage. Flicker free.
Datasheet
Additional information
| Voltage |
220-400Vac 50/60Hz |
|---|---|
| Current (mA) |
5492 |
| Rated Power (W) |
1200 |
| CCT Words |
Day Light |
| CCT (K) |
5000 |
| Total Luminous Flux (lm) |
19200, 192000 |
| Beam Angle(°) |
Asymmetric 50 (120° x 50°) |
| Nominal Lifetime (h) |
54000 |
| L70B50 Lifetime (h) |
108000 |
| L80B10 Lifetime (h) |
108000 |
| L90 Lifetime (h) |
63000 |
| Blue Light Hazard |
RG1 |
| SDCM of CCT | |
| Flicker % | |
| Power Factor |
0.95 |
| Weight (kg) |
29.5 |
| Protection Rating |
Class I |
| IK Rating |
IK08 |
| IP Rating |
IP66 |
| Driver Part Number |
S6-1K2D500 |
| Driver Input Voltage |
220-400Vac 50/60Hz |
| Driver Maximum Power (W) |
600*2 |
| Driver Output Voltage (Vdc) |
260-500*2 |
| Driver Output Current (mA) |
0.18-1.80*2 |
| Driver Power Factor |
0.95 |
| Driver Ripple Current (%) |
2% |
| Lighting Technology Used |
LED |
| Mains / Non-Mains (MLS/NMLS) |
NMLS |
| Connected Light source (Y/N) |
N |
| Anti-Glare Shield (Y/N) |
N |
| Energy Efficiency Class |
C, F |
| Useful Luminous Flux (lm) |
110000, 207000 |
| CCT |
5000 |
| On-Mode Power (Pon) (W) |
1140 |
| Standby Power (Psb) (W) |
0 |
| CRI |
>70, 82 |
| CRI (min) |
70, 80 |
| CRI (max) |
74, 84 |
| Height (mm) |
741 |
| Width (mm) |
656 |
| Depth (mm) |
127 |
| R9 CRI (LED/OLED) |
-45 |
| Survival Factor (x.xx) |
0.9 |
| Light Source Supply |
375Vdc 3040mA |
| Accessories 1 |
Outdoor Housing for LED drivers VER-BOX |
